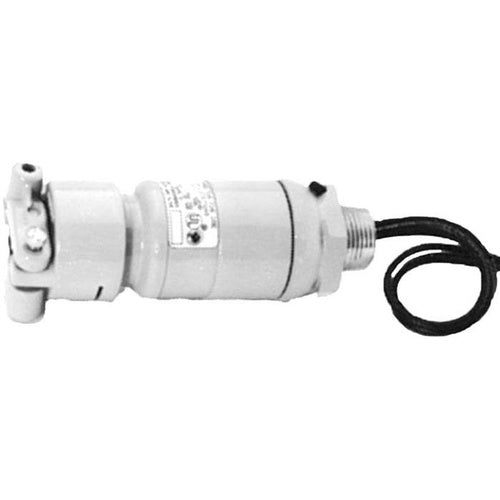

Appleton ECC506RH 1/2" .500-.625 Cord Connector

Overview

Appleton ECC506RH 1/2" .500-.625 Cord Connector

Product Specifications

• Catalog Description: PORTABLE CORD CONNECTOR, TYPE STRAIGHT, THREAD SIZE 1/2 INCH, MATERIAL EPOXY POWDER COATED COPPER FREE ALUMINUM, CORD SIZE 0.5 TO 0.625 INCH, SIZE 5.53 INCH L X 1.84 INCH DIA, APPROVAL UL, CSA C22.2, APPLICATION WATERTIGHT, CONSTRUCTION FEATURE EXPLOSIONPROOF, DUST IGNITIONPROOF, ENCLOSURE CLASS I DIV 1 2 GROUP B C D, CLASS II DIV 1 2 GROUP G, CLASS III, NEMA 7B/7C/7D/9G, INCLUSION 12 INCH 90 DEGREE WIRE LEAD
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Epoxy Powder Coated Copper-Free Aluminum Material; UL 1203, CSA C22.2 Approval; 480 Volt AC/DC Voltage Rating; 20 Amp Current Rating; Water Tight; 0.5 to 0.625 Inch Cord Size; Nipple Size 1/2 Inch; Used on 18 Thru 12 AWG 3-Conductor Type S or SO Cord; Applicable Standard Nec/Cec; ECC Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Straight Blade Connector
• Unspsc: 39121406
• UPC 12 Digit: 781381248600
• SKU Name: app ecc506rh

Resources

• Manufacturer Spec Sheet
