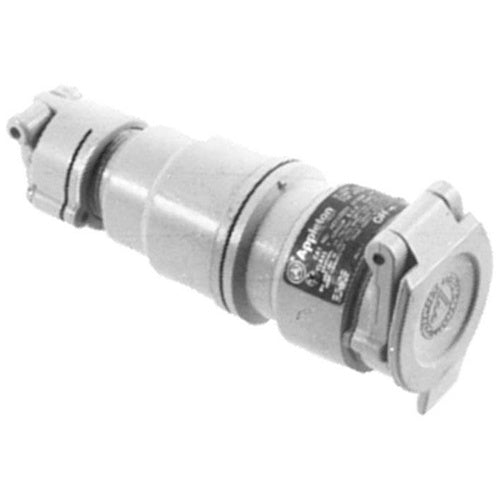

Appleton ECCL20232 U Connector w/Flip Cover

Overview

Appleton ECCL20232 U Connector w/Flip Cover

Product Specifications

• UPC: 78138144078
• Cord Size: 0.437 TO 0.625 INCH
• Material: EPOXY BAKED COPPER FREE ALUMINUM
• Additional Information: DOOR TYPE SELF CLOSING SPRING COVER
• Catalog Number: ECCL20232
• Brand Name: U-Line.
• Type: POLARIZED
• Voltage Rating: 250 VAC
• Current Rating: 20 AMPERE
• Number Of Poles: 3
• Number Of Wires: 2
• Ground Type: GROUNDING
• Catalog Description: U-LINE CABLE CONNECTOR WITH FLIP COVER, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 250 VAC, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, FINISH: EPOXY POWDER COAT, CORD DIAMETER: 7/16 - 5/
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Epoxy Powder Coated Copper-Free Aluminum Material; 2 Wire(S); UL 1203, CSA C22.2 Approval; 250 Volt AC Voltage Rating; 20 Amp Current Rating; Grounding; 3 Pole(S); 0.538 to 0.639 Inch Cord Size; U-LINE[TM] Brand; Power Rating 2HP; Excludes Spring Cover; Application Non-Hazardous Location; Applicable Standard Nec/Cec; ECCL Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Straight Blade Connector
• Unspsc: 39121406
• UPC 12 Digit: 781381440783
• SKU Name: app eccl20232
