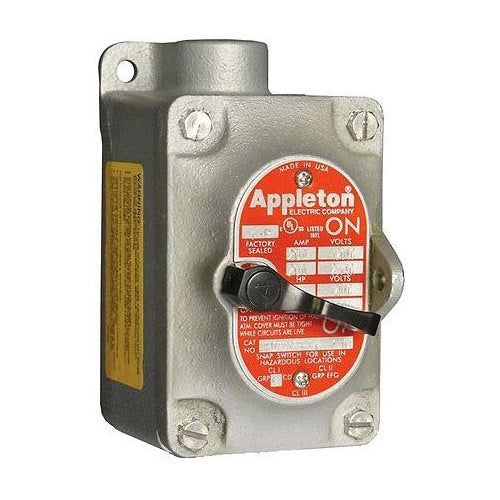

Appleton EDK1MSAB Manual Motor Starter

Overview

Appleton EDK1MSAB Manual Motor Starter

Product Specifications

• Catalog Description: MANUAL STARTER COVER ASSEMBLY, TYPE COVER, CHAMBER, DEVICE, USED ON EDS SERIES MANUAL MOTOR STARTER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, ENCLOSURE CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/7CD/9EFG, ENCLOSURE MATERIAL GRAY EPOXY POWDER COATED MALLEABLE IRON
• Category: Manual Starters
• Full Technical Description: 1-Pole, Cover/Chamber/Device Assembly Type; Eds Manual Motor Starter Used on; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/3R/7CD/9EFG Enclosure; Explosionproof, Dust Ignitionproof; Hub Size 3/4 Inch; Material Gray Epoxy Powder Coated Malleable Iron (Cover), Copper-Free Aluminum (Chamber); Applicable Standard Nec/Cec, UL (Canada and Us), UL 508/698/1203, CSA C22.2
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Motor Starter Accessories
• Unspsc: 39121521
• UPC 12 Digit: 781381800532
• SKU Name: app edk1msab

Resources

• Manufacturer Spec Sheet
