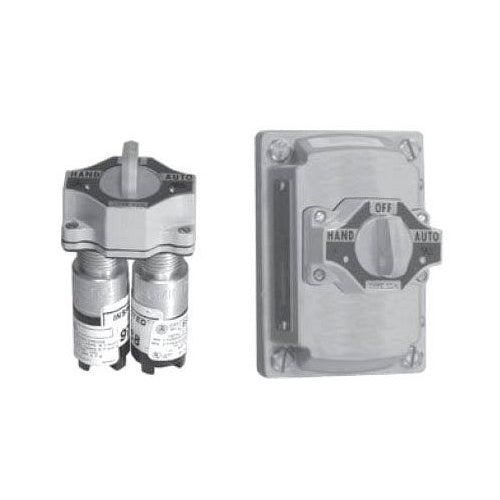

Appleton EDKB102 3-Position 2-Circuit Selector Switch Cover Assembly

Overview

Appleton EDKB102 3-Position 2-Circuit Selector Switch Cover Assembly

Product Specifications

• UPC: 78138167390
• Material: Malleable Iron
• Enclosure: Class I Div 1 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G
• Used On: EDS Series Device Box
• Approval: UL
• Additional Information: Application Hazardous Location
• Catalog Number: EDKB102
• Constructional Feature: Dust Ignitionproof, Explosionproof
• Operation Type: Maintained
• Contact Configuration: 1NO-1NC
• Number Of Selector Switches: 1
• Number Of Circuits: 2
• Number Of Positions: 3
• Operator Type: Front Operated Knob
• Catalog Description: CONTENDER EDKB SERIES 2 CIRCUIT SELECTOR SWITCH ASSEMBLY, NUMBER OF STEPS: 3, CONTACT RATING: 10 AMP AT 600 VAC, ENCLOSURE: NEMA 3, 7CD, 9EFG, MOUNTING: SURFACE MOUNT WITH 1/2 IN NPSM, OPERATION: MAINTAINED, STANDARD: CLASS I, DIVISION 1,
• Category: Selector Switch Components
• Full Technical Description: Malleable Iron Material; Eds Device Box Used on; 4NO-2NC Contact Configuration; Maintained Operation Type; UL 508/698/1203, UL (Canada and Us), CSA C22.2 Approval; Class I Div 1 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure; Explosionproof, Dust Ignitionproof; Knob Operator Type; 3 Position(S); 2 Circuit(S); Thread Size 1/2 Inch NPSM; Voltage Rating 600 Volt AC; Current Rating 10 Amp; Legend Hand-Off-Auto; Includes Cover, Internal Ground Screw; Applicable Standard Nec/Cec; EDKB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Selector Switch Cover
• Unspsc: 39121565
• UPC 12 Digit: 781381673907
• SKU Name: app edkb102

Resources

• Manufacturer Spec Sheet
