Appleton edkr22q

Overview

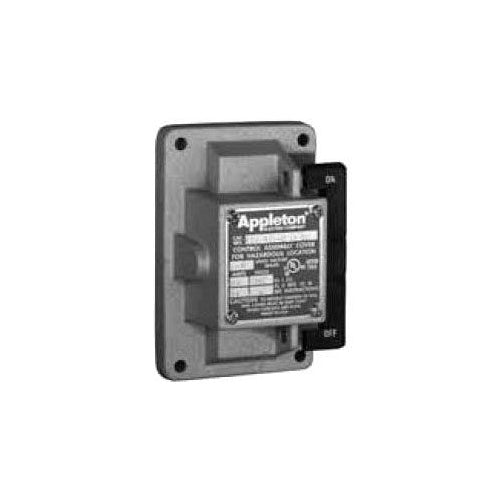

Appleton EDKR22Q Cover Chamber Switch 2P 20A

Product Specifications

• Part Number: EDKR22Q
• UPC / GTIN: 78138170948
• UPC: 78138170948
• Approval: UL 894/1203
• Additional Information: Application Designed to Prevent Arcing of Enclosed Switches in Ignitable Atmospheres During Connect and Disconnect Operation of Lighting and Light Power Loads, Use in Classified Areas Where Ignitable Vapors, Gases or Highly Combustible Dusts are Present
• Model: EDK
• Constructional Feature: Dust Ignitionproof, Explosionproof
• Voltage Rating: 120 to 277 VAC
• Current Rating: 20 Ampere
• Contact Configuration: 2-Pole
• Operator Type: Rocker Arm Handle
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G
• CATALOG DESCRIPTION: EXPLOSIONPROOF COVER/CHAMBER SWITCH, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 120 TO 277 VAC, CURRENT RATING 20 AMPERE, CONTACT CONFIGURATION 2-POLE, OPERATOR TYPE ROCKER ARM HANDLE, ENCLOSURE CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 7CD/9EFG, APPROVAL UL 894/1203, APPLICATION DESIGNED TO PREVENT ARCING OF ENCLOSED SWITCHES IN IGNITABLE ATMOSPHERES DURING CONNECT AND DISCONNECT OPERATION OF LIGHTING AND LIGHT POWER LOADS, USE IN CLASSIFIED AREAS WHERE IGNITABLE VAPORS, GASES OR HIGHLY COMBUSTIBLE DUSTS ARE PRESENT, INSTALLATION IN CHEMICAL PLANTS, PETROCHEMICAL PLANTS, REFINERIES, OTHER PROCESS INDUSTRIES
• Full Technical Description: Malleable Iron Material; Eds Factory Sealed Tumbler Switch Used on; UL 894/1203, CUL Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure; Explosionproof, Dust Ignitionproof; Switch Type 2-Pole; Voltage Rating 120/277 Volt AC; Current Rating 20 Amp; Includes Internal Ground Screw, Factory Sealed Switch; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Product Description: Appleton EDKR22Q Cover Chamber Switch 2P 20A
• UNSPSC: 39121565
• UPC 12 Digit: 781381709484
