Appleton eds110f3w3a

Overview

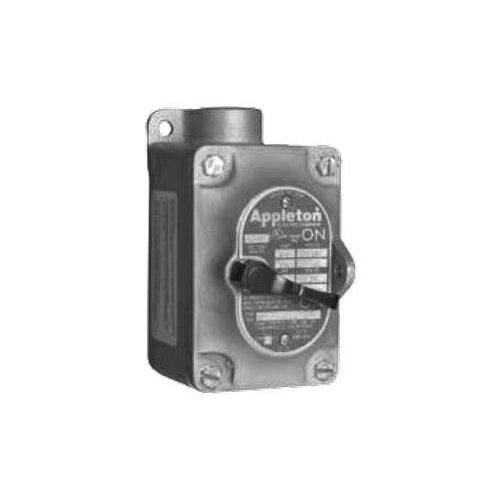

APPLETON ELECTRIC EDS110F3W3A Tumbler Switch

Product Specifications

• Catalog Number: EDS110F3W3A
• UPC / GTIN: 781381795661
• Manufacturer: APPLETON ELECTRIC
• Actuator Material: Nylon, Nylon 6/6
• Amps: 30A
• Approvals: ul.png
• Box Type: Single Gang
• Construction Features: Dust-Ignitionproof, Explosionproof
• Contact Configuration: 3-Way
• Hazardous Location Classification: Class I, Divisions 1 And 2, Groups C And D; Class II, Divisions 1 And 2, Groups E, F And G; Class III; NEMA 7CD/9EFG
• Enclosure Composition: Metallic
• Enclosure Material: High-Strength Copper-Free Aluminum
• Family Series: Appleton Disconnect Switches Series, Contender Series
• Fusible: No
• Grade: 6/6
• Hub Size: 1"
• Mounting: Wall
• Nema Rating: NEMA 3, NEMA 7, NEMA 9
• Poles: 1 Front-Operated Lever
• Product Data Sheet: appleton-electric-eds110f13a.pdf
• Product Series: Contender Series
• Standards Compliant: No
• Series: Contender Series
• Type: Dead-End
• UL Class: UL1203,UL894
• Voltage: 120-277V AC
• Country Of Origin: US
• Height: 16.03 cm
• Length: 11.91 cm
• Width: 7.62 cm
• Weight: 0.045 kg
• UPC: 781381795661
