Appleton eds11273

Overview

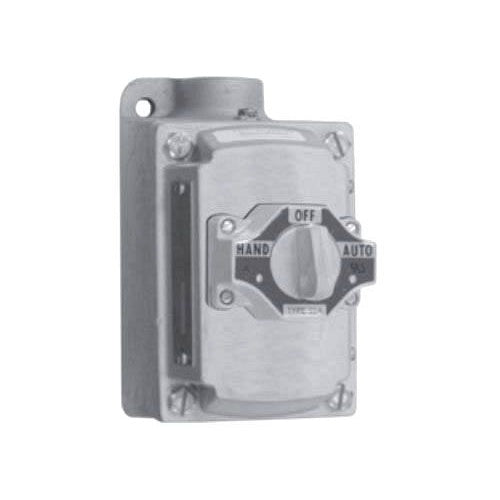

Appleton EDS11273 3-Position 1-Universal Selector Switch Station

Product Specifications

• Part Number: EDS11273
• UPC / GTIN: 78138169847
• UPC: 78138169847
• Number of Circuits: 2
• Number of Positions: 3
• Operator Type: KNOB
• Box Type: SINGLE GANG
• Hub Size: (1) 1/2 INCH
• Enclosure Material: ZINC ELECTROPLATED DICHROMATE EPOXY POWDER COATED MALLEABLE IRON
• Enclosure: CLASS I DIV 1 GROUP C D, CLASS I DIV 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/7C/7D/9E/9F/9G
• Additional Information: INCLUDES INTERNAL GROUND SCREW
• Brand Name: Contender[T], Appleton[R]
• Model: EDS
• Type: DEAD END
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF
• Voltage Rating: 600 VAC
• Current Rating: 10 AMPERE
• Contact Configuration: 2NO-2NC
• CATALOG DESCRIPTION: SELECTOR SWITCH CONTROL STATION, TYPE DEAD END, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, OPERATION TYPE MAINTAINED, CONTACT CONFIGURATION 4NO-4NC, NUMBER OF CIRCUITS 2, NUMBER OF POSITIONS 3, OPERATOR TYPE KNOB, BOX TYPE SINGLE GANG, HUB SIZE 1/2 INCH, ENCLOSURE MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON, ENCLOSURE CLASS I DIV 1 GROUP C D, CLASS I DIV 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/7CD/9EFG, APPROVAL UL 508/698/1203, SIZE 6.81 INCH L X 3.72 INCH W X 6.69 INCH D
• Full Technical Description: Dead End Type; 4NO-2NC Contact Configuration; 1/2 Inch Hub Size; Maintained Operation Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Enclosure Material; UL 508/698/1203, UL (Canada and Us), CSA C22.2 Approval; 600 Volt AC Voltage Rating; Class I Div 1 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure; 10 Amp Current Rating; Explosionproof, Dust Ignitionproof; Knob Operator Type; 3 Position(S); 2 Circuit(S); 1-Gang Box Type; CONTENDER[TM] Brand; Legend Hand-Off-Auto; Includes Internal Ground Screw; Application Chemical/Petrochemical Plant, Refinery
• Manufacturer: Appleton Electric
• Product Description: Appleton EDS11273 3-Position 1-Universal Selector Switch Station
• UNSPSC: 39121565
• UPC 12 Digit: 781381698474
