Appleton eds21273

Overview

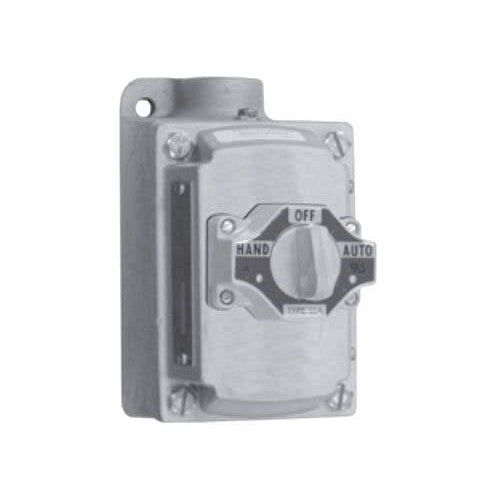

EDS21273 ContenderTM 1-Gang 2-Circuit Dead-End Selector Switch Control Station, NEMA 3/7CD/9EFG

Product Specifications

• Catalog Number: EDS21273
• UPC / GTIN: 781381698481
• Manufacturer Brand: Appleton®
• UNSPSC: 39121565
• Features: Constructional feature explosionproof and dust-ignitionproof; Factory sealed eliminates the need for adding sealing fittings and compound at each conduit entrance; Dozens of possible combinations of pushbuttons, pilot lights and selector switches; Epoxy powder coat finish for enhanced corrosion resistance; Enclosed stainless steel helper spring prevents accidental operation of pushbutton in severe vibration installations; Momentary pushbuttons are supplied with lockout type guards as standard; A hole in the guard will accept locks with up to 1/4 in hasp; Permits locking of pushbutton to prevent unauthorized operation; Large backbox for ample wiring room supplied with internal ground screw; Accurately tapped, tapered hubs for tight, rigid joints and ground continuity
• Actuator: Knob
• Connection Type: 3/4 in Hub
• Contact Rating: 10 A at 600 V AC | 10 A at 600 VAC
• Country of Origin: Mexico
• Dimensions: 6.51 in L x 3.72 in W x 6.69 in D
• Finish: Electro-Zinc Plated/Chromate/Epoxy Powder Coated
• Legend: Auto/Hand/Off
• Material: Malleable Iron
• Mounting Type: Surface
• NEMA Rating: NEMA 3/7CD/9EFG
• Operator Type: Maintained
• Series: ContenderTM
• Type: 1-Gang 2-Circuit Dead-End
