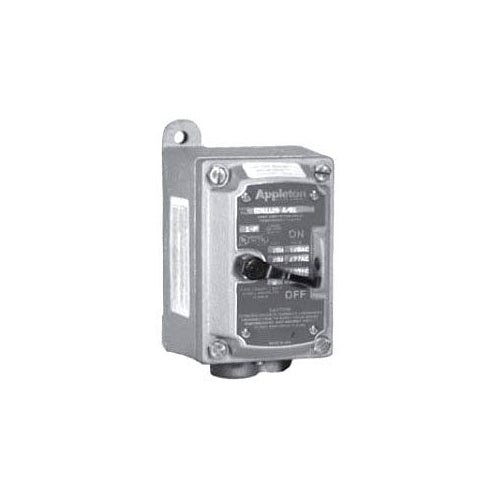

Appleton EDS2130SA Aluminum Explosion-Proof Pushbutton Station

Overview

Appleton EDS2130SA Aluminum Explosion-Proof Pushbutton Station

Product Specifications

• UPC: 78138173689
• Operator Type: Front Operated Lever
• Box Type: Single Gang
• Hub Size: 3/4 Inch
• Enclosure Material: High Strength Copper Free Aluminum
• Actuator Material: Nylon 6/6
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG
• Approval: UL 894/1203
• Additional Information: Application Designed to Prevent Arcing of Enclosed Switches in Ignitable Atmospheres During Connect and Disconnect Operation of Lighting and Light Power Loads, Classified Areas Where Ignitable Vapors, Gases or Highly Combustible Dusts are Present, Install
• Catalog Number: EDS2130SA
• Brand Name: Contender[R]
• Model: EDS
• Type: Dead End
• Constructional Feature: Dust Ignitionproof, Explosionproof
• Voltage Rating: 120 to 277 VAC
• Current Rating: 20 Ampere
• Contact Configuration: 3-Way
• Catalog Description: EXPLOSIONPROOF TUMBLER SWITCH CONTROL STATION, TYPE DEAD END, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 120 TO 277 VAC, CURRENT RATING 20 AMPERE, CONTACT CONFIGURATION 3-WAY, OPERATOR TYPE FRONT OPERATED LEVER, BOX TYPE SINGLE GANG, HUB SIZE 3/4 INCH, ENCLOSURE MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED COPPER-FREE ALUMINUM, ACTUATOR MATERIAL NYLON 6/6, ENCLOSURE CLASS I DIV 1 GROUP C D, CLASS I DIV 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/7CD/9EFG, APPROVAL UL 894/1203, POWER RATING 1 HP AT 120 VAC, 2 HP AT 240 VAC, APPLICATION HAZARDOUS LOCATION
• Category: Control Station Complete Assemblies
• Full Technical Description: Dead End Type; 3-Way Contact Configuration; 3/4 Inch Hub Size; Copper-Free Aluminum Enclosure Material; UL 894/1203, UL (Canada and Us), CSA C22.2 Approval; 120/277 Volt AC Voltage Rating; Class I Div 1 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure; 20 Amp Current Rating; Explosionproof, Dust Ignitionproof; Front Operated Lever Operator Type; Nylon 6/6 Actuator Material; 1-Gang Box Type; CONTENDER[TM] Brand; Power Rating 1 HP at 120 Volt AC, 2 HP at 240 Volt AC; Overall Dimension 3.72 Inch Width X 5.31 Inch Depth X 6.81 Inch Height; Includes Internal Ground Screw; Application Lighting and Light Po
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Tumbler/Snap Switch Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381736893
• SKU Name: app eds2130sa

Resources

• Manufacturer Spec Sheet
