Appleton eds218

Overview

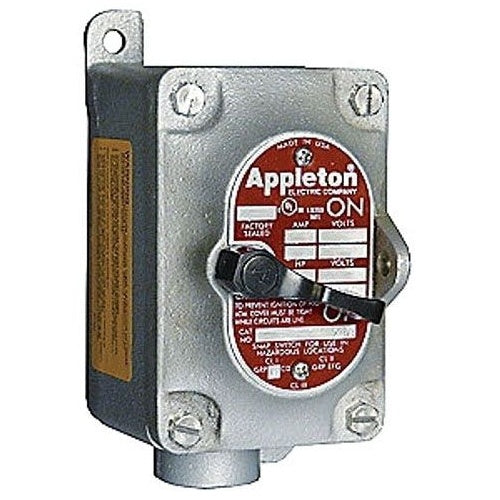

ContenderTM EDS218 1-Gang Dead End Tumbler Switch Control Station, 120/277 V AC, 20 A, NEMA 3/7CD/9EFG NEMA Rating

Product Specifications

• Catalog Number: EDS218
• UPC / GTIN: 781381696814
• Manufacturer Brand: Appleton®
• UNSPSC: 39121565
• Features: Corrosion resistant, pad lockable in the on or off position; Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure; Stainless steel hex head screws attach sealing chamber to cover and mounting enclosure; Each handle has close-tolerance threaded stainless steel shaft to meet explosion proof requirements; Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads; Explosion proof dust-ignitionproof
• Actuator: Front Operated Lever
• Amperage Rating: 20 A
• Connection Type: Thread
• Country of Origin: Mexico
• Dimensions: 5.31 in H x 3.72 in W x 5.31 in D
• Finish: Triple Coated
• Legend: ON/OFF
• Material: Malleable Iron
• Mounting Type: Surface
• NEMA Rating: NEMA 3/7CD/9EFG
• Number of Poles: 2
• Series: EDS
• Type: 1-Gang Dead End
• Voltage Rating: 120/277 V AC | 120/277 VAC
