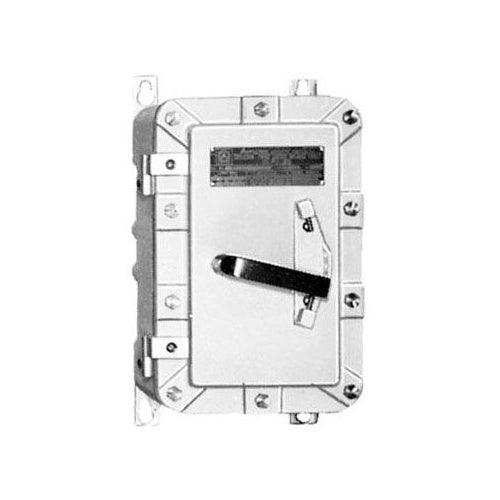

Appleton EDS3036 3P 30A 600V Disconnect Switch

Overview

Appleton EDS3036 3P 30A 600V Disconnect Switch

Product Specifications

• UPC: 78138123987
• Operator Type: Internal Handle
• Cover Type: Hinged
• Hub Size: 1-1/2 Inch
• Hub Location: Top, Bottom
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3R/7C/7D/9E/9F/9G
• Enclosure Material: Epoxy Enamel Double Coated Aluminum
• Size: 8.25 Inch W x 8.88 Inch D x 14.75 Inch H
• Approval: UL, CSA
• Catalog Number: EDS3036
• Brand Name: Unilet[R]
• Constructional Feature: Dust Ignitionproof, Explosionproof
• Voltage Rating: 120/240/480/600 VAC, 250 VDC
• Current Rating: 30 Ampere
• Power Rating: 5 HP at 120 VAC, 10 HP at 240 VAC, 20 HP at 480 VAC, 25 HP at 600 VAC, 7-1/2 HP at 250 VDC
• Number Of Poles: 3
• Fuse Provision: Non-Fusible
• Catalog Description: EXPLOSIONPROOF DISCONNECT SWITCH, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 120/240/480/600 VAC, 250 VDC, CURRENT RATING 30 AMPERE, POWER RATING 5 HP AT 120 VAC, 10 HP AT 240 VAC, 20 HP AT 480 VAC, 25 HP AT 600 VAC, 7-1/2 HP AT 250 VDC, NUMBER OF POLES 3, FUSE PROVISION NON-FUSIBLE, OPERATOR TYPE INTERNAL HANDLE, COVER TYPE HINGED, HUB SIZE 1-1/2 INCH, HUB LOCATION TOP, BOTTOM, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3R/7CD/9EFG, ENCLOSURE MATERIAL EPOXY ENAMEL DOUBLE COATED ALUMINUM, SIZE 8.25 INCH W X 8.88 INCH D X 14.75 INCH H, APPROVAL UL 894/1203, CSA C22.2
• Category: Disconnect Motor Switches & Accessories
• Full Technical Description: 9.63 Inch Width X 7.25 Inch Depth X 16.75 Inch Height Size; 1-1/2 Inch Hub Size; Epoxy Powder Coated Copper-Free Aluminum Enclosure Material; UL 894/1203, CSA C22.2 Approval; 600 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3R/7BCD/9EFG Enclosure; 30 Amp Current Rating; Hinged Cover Type; 5 HP at 120 Volt AC, 10 HP at 240 Volt AC, 20 HP at 480 Volt AC, 25 HP at 600 Volt AC, 7-1/2 HP at 250 Volt DC Power Rating; 3 Pole(S); Heavy Duty, Explosionproof, Dust Ignitionproof; Internal Handle Operator Type; Feed-Through, Top, Bottom Hub Location; Non-Fusible Fuse Provision; Material Stainless
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Disconnect Switch
• Unspsc: 39121565
• UPC 12 Digit: 781381239875
• SKU Name: app eds3036
