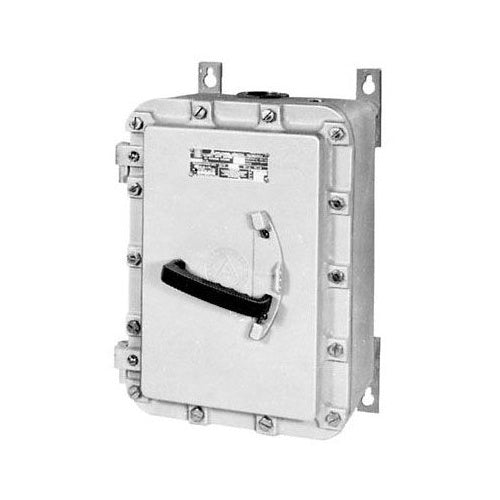

Appleton EDS6036 3P 60A 600V Disconnect Switch

Overview

Appleton EDS6036 3P 60A 600V Disconnect Switch

Product Specifications

• UPC: 78138123988
• Operator Type: Internal Handle
• Cover Type: Hinged
• Hub Size: 2 Inch
• Hub Location: Top, Bottom
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3R/7C/7D/9E/9F/9G
• Enclosure Material: Epoxy Enamel Double Coated Aluminum
• Size: 9.63 Inch W x 9.63 Inch D x 16.75 Inch H
• Approval: UL, CSA
• Catalog Number: EDS6036
• Brand Name: Unilet[R]
• Constructional Feature: Dust Ignitionproof, Explosionproof
• Voltage Rating: 120/240/480/600 VAC, 250 VDC
• Current Rating: 60 Ampere
• Power Rating: 10 HP at 120 VAC, 20 HP at 240 VAC, 40 HP at 480 VAC, 60 HP at 600 VAC, 15 HP at 250 VDC
• Number Of Poles: 3
• Fuse Provision: Non-Fusible
• Catalog Description: EXPLOSIONPROOF DISCONNECT SWITCH, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 120/240/480/600 VAC, 250 VDC, CURRENT RATING 60 AMPERE, POWER RATING 10 HP AT 120 VAC, 20 HP AT 240 VAC, 40 HP AT 480 VAC, 60 HP AT 600 VAC, 15 HP AT 250 VDC, NUMBER OF POLES 3, FUSE PROVISION NON-FUSIBLE, OPERATOR TYPE INTERNAL HANDLE, COVER TYPE HINGED, HUB SIZE 2 INCH, HUB LOCATION TOP, BOTTOM, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3R/7CD/9EFG, ENCLOSURE MATERIAL EPOXY ENAMEL DOUBLE COATED ALUMINUM, SIZE 9.63 INCH W X 9.63 INCH D X 16.75 INCH H, APPROVAL UL 894/1203, CSA C22.2
• Category: Disconnect Motor Switches & Accessories
• Full Technical Description: 9.63 Inch Width X 7.25 Inch Depth X 16.75 Inch Height Size; 2 Inch Hub Size; Epoxy Powder Coated Copper-Free Aluminum Enclosure Material; UL 894/1203, CSA C22.2 Approval; 600 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3R/7BCD/9EFG Enclosure; 60 Amp Current Rating; Hinged Cover Type; 15 HP at 120 Volt AC, 30 HP at 240 Volt AC, 75 HP at 480/600 Volt AC, 25 HP at 250 Volt DC Power Rating; 3 Pole(S); Heavy Duty, Explosionproof, Dust Ignitionproof; Internal Handle Operator Type; Feed-Through, Top, Bottom Hub Location; Non-Fusible Fuse Provision; Material Stainless Steel (Handle Shaft/Bushing/Ex
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Disconnect Switch
• Unspsc: 39121565
• UPC 12 Digit: 781381239882
• SKU Name: app eds6036

Resources

• Manufacturer Spec Sheet
