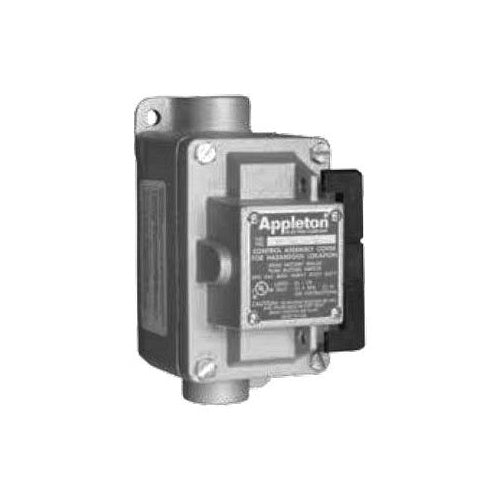

Appleton EDSC110-R3W3 Switch Conduit Body

Overview

Appleton EDSC110-R3W3 Switch Conduit Body

Product Specifications

• UPC: 78138145081
• Operator Type: ROCKER ARM OPERATED LEVER
• Box Type: SINGLE GANG
• Hub Size: 1 INCH
• Enclosure Material: ZINC ELECTROPLATED DICHROMATE EPOXY POWDER COATED ASTM A47-77 MALLEABLE IRON
• Actuator Material: NYLON 6/6
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 7BCD/9EFG
• Catalog Number: EDSC110-R3W3
• Brand Name: UNILETS[R]
• Model: EDS
• Type: FEED THROUGH
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF
• Voltage Rating: 120 TO 277 VAC
• Current Rating: 30 AMPERE
• Contact Configuration: 3 WAY
• Catalog Description: EXPLOSIONPROOF TUMBLER SWITCH CONTROL STATION, TYPE FEED THROUGH, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 120 TO 277 VAC, CURRENT RATING 30 AMPERE, CONTACT CONFIGURATION 3-WAY, OPERATOR TYPE ROCKER ARM OPERATED LEVER, BOX TYPE SINGLE GANG, HUB SIZE (2) 1 INCH, ENCLOSURE MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON, ACTUATOR MATERIAL NYLON 6/6, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 7BCD/9EFG, APPROVAL UL 894/1203, OVERALL DIMENSION 3 INCH W X 4.5 INCH D X 6.31 INCH H, APPLICATION HAZARDOUS LOCATION
• Category: Disconnect Motor Switches & Accessories
• Full Technical Description: Feed-Through Type; 3-Way Contact Configuration; 1 Inch Hub Size; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Enclosure Material; UL 894/1203, CUL Approval; 120/277 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7BCD/9EFG Enclosure; 30 Amp Current Rating; Explosionproof, Dust Ignitionproof; Rocker Arm Operated Lever Operator Type; Nylon 6/6 Actuator Material; 1-Gang Box Type; Power Rating 2 HP at 120/240 Volt AC; Overall Dimension 3 Inch Width X 4.5 Inch Depth X 6.31 Inch Height; Includes Internal Ground Screw; Application Lighting and Light Power Load, Chemical/Petrochemical
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Tumbler/Snap Switch Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381450812
• SKU Name: app edsc110r3w3
