Appleton edsc1140

Overview

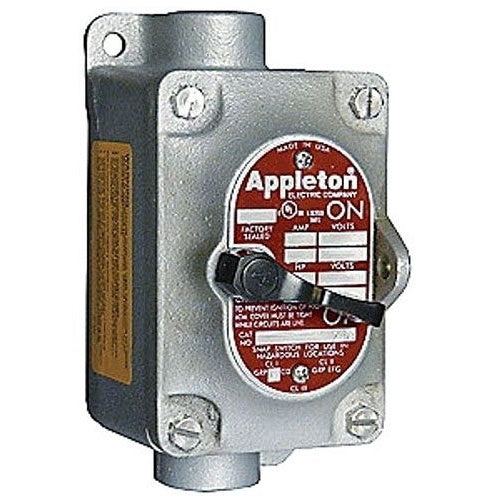

Appleton EDSC1140 1-Gang 1/2" FS Cover Switch

Product Specifications

• Part Number: EDSC1140
• UPC / GTIN: 78138169721
• UPC: 78138169721
• Operator Type: Front Operated Lever
• Box Type: Single Gang
• Hub Size: 1/2 Inch
• Enclosure Material: ASTM A47-77 Zinc Electroplated Dichromate Epoxy Powder Coated Malleable Iron
• Actuator Material: Nylon 6/6
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG
• Approval: UL 894/1203
• Additional Information: Application Designed to Prevent Arcing of Enclosed Switches in Ignitable Atmospheres During Connect and Disconnect Operation of Lighting and Light Power Loads, Classified Areas Where Ignitable Vapors, Gases or Highly Combustible Dusts are Present, Install
• Brand Name: Contender[R]
• Model: EDS
• Type: Feed Through
• Constructional Feature: Dust Ignitionproof, Explosionproof
• Voltage Rating: 120 to 277 VAC
• Current Rating: 20 Ampere
• Contact Configuration: 4-Way
• CATALOG DESCRIPTION: CONTENDER EDSC SERIES 1-GANG 4-WAY TUMBLER SWITCH, VOLTAGE RATING: 120 - 277 VAC, AMPERAGE RATING: 20 AMP, ACTUATOR: FRONT OPERATED, ENCLOSURE: NEMA 3, 7CD, 9EFG, MOUNTING: SURFACE MOUNT WITH 1/2 IN FEED-THRU HUB, HP RATING: 1 HP AT 120 VAC, 2 HP AT 240 VAC, MATERIAL: MALLEABLE IRON BODY, NYLON 6/6 HANDLE, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), HEIGHT: 5.31 IN, WIDTH: 3.72 IN, DEPTH: 5.31 IN, STANDARD: UL 894, UL 1203, E10523, E81751 UL LISTED, CLASS I, DIVISION 1, GROUPS C, D, CLASS I, DIVISION 2, GROUPS C, D, CLASS II, DIVISION 1 AND 2, GROUPS E, F, G, CLASS III, FOR USE IN CLASSIFIED AREAS WHERE IGNITABLE VAPORS, GASES OR HIGHLY COMBUSTIBLE DUSTS ARE PRESENT
• Full Technical Description: Feed-Through Type; 4-Way Contact Configuration; 1/2 Inch Hub Size; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Enclosure Material; UL 894/1203, UL (Canada and Us), CSA C22.2 Approval; 120/277 Volt AC Voltage Rating; Class I Div 1 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure; 20 Amp Current Rating; Explosionproof, Dust Ignitionproof; Front Operated Lever Operator Type; Nylon 6/6 Actuator Material; 1-Gang Box Type; CONTENDER[TM] Brand; Power Rating 1 HP at 120
• Manufacturer: Appleton Electric
• Product Description: Appleton EDSC1140 1-Gang 1/2" FS Cover Switch
• UNSPSC: 39121565
• UPC 12 Digit: 781381697217
