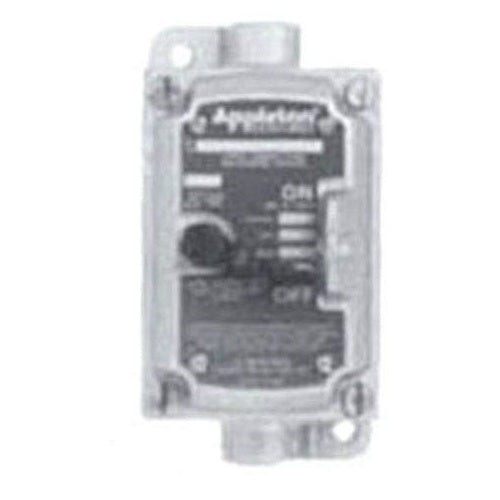

Appleton EDSC21101SA 1-Gang 3/4" Aluminum FS Cover Switch

Overview

Appleton EDSC21101SA 1-Gang 3/4" Aluminum FS Cover Switch

Product Specifications

• Brand Name: Appleton
• Enclosure: NEMA 3
• Number Of Poles: 1
• Special Features: Enclosures may be used to house a variety of electrical wiring devices; Malleable iron or optional copperfree aluminum body and cover, copperfree aluminum and sealing chamber, nylon handle; For aluminum backbox and cover add suffix - SA
• Standard: Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G, Class III
• Sub Brand: Contender
• Type: Manual Starter Cover
• Catalog Description: CONTENDER MANUAL STARTER COVER, NUMBER OF POLES: 1, ENCLOSURE: NEMA 3, HUB SIZE: 3/4 IN, STANDARD: CLASS I, DIVISION 1 AND 2, GROUPS C, D, CLASS II, DIVISION 1 AND 2, GROUPS E, F, G, CLASS III, FOR 1-GANG DEAD-END HUB ARRANGEMENTS
• Category: Manual Starters
• Full Technical Description: Feed-Through Type; Gray Epoxy Powder Coated Aluminum (Backbox/Cover), Copper-Free Aluminum (Sealing Chamber), Nylon (Handle) Material; UL 508/698/1203, UL (Canada and Us), CSA C22.2 Approval; 1 HP at 120/240 Volt AC, 1/4 HP at 32/240 Volt DC Power Rating; 1 Pole(S); Explosionproof, Dust Ignitionproof; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure Type; 3/4 Inch Conduit Size; 120/240 Volt AC, 32/240 Volt DC Motor/Line Voltage; CONTENDER[TM] Brand; Overall Dimension 3.72 Inch Width X 5.31 Inch Depth X 6.81 Inch Height; Number of Gangs 1; Applicable Standard Nec/Cec; EDS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Motor Starter
• Unspsc: 39121521
• UPC 12 Digit: 781381737760
• SKU Name: app edsc21101sa

Resources

• Manufacturer Spec Sheet
