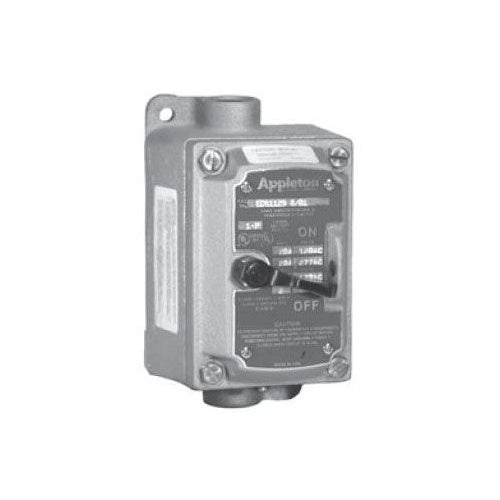

Appleton EDSC2129SA Aluminum Explosion-Proof Switch Station

Overview

Appleton EDSC2129SA Aluminum Explosion-Proof Switch Station

Product Specifications

• UPC: 78138173778
• Operator Type: FRONT OPERATED LEVER
• Box Type: SINGLE GANG
• Hub Size: 3/4 INCH
• Enclosure Material: HIGH STRENGTH COPPER FREE ALUMINUM
• Actuator Material: NYLON 6/6
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/7CD/9EFG
• Catalog Number: EDSC2129SA
• Brand Name: Contender[T], UNILETS[R]
• Model: EDS
• Type: FEED THROUGH
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF
• Voltage Rating: 120 TO 277 VAC
• Current Rating: 20 AMPERE
• Contact Configuration: 1 POLE
• Catalog Description: CONTENDER EDSC SERIES 1-GANG TUMBLER SWITCH, VOLTAGE RATING: 120 - 277 VAC, AMPERAGE RATING: 20 AMP, NUMBER OF POLES: 1, ACTUATOR: FRONT OPERATED, ENCLOSURE: NEMA 3, 7CD, 9EFG, MOUNTING: SURFACE MOUNT WITH 3/4 IN FEED-THRU HUB, HP RATI
• Category: Control Station Complete Assemblies
• Full Technical Description: Feed-Through Type; 1-Pole Contact Configuration; 3/4 Inch Hub Size; Copper-Free Aluminum Enclosure Material; UL 894/1203, UL (Canada and Us), CSA C22.2 Approval; 120/277 Volt AC Voltage Rating; Class I Div 1 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure; 20 Amp Current Rating; Explosionproof, Dust Ignitionproof; Front Operated Lever Operator Type; Nylon 6/6 Actuator Material; 1-Gang Box Type; CONTENDER[TM] Brand; Power Rating 1 HP at 120 Volt AC, 2 HP at 240 Volt AC; Overall Dimension 3.72 Inch Width X 5.31 Inch Depth X 6.81 Inch Height; Includes Internal Ground Screw; Application Lighting and Light Power Load, Chemical/Petrochemical Plant, Refinery; Applicable Standard Nec/Cec; EDS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Tumbler/Snap Switch Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381737784
• SKU Name: app edsc2129sa
