Appleton edsc2230

Overview

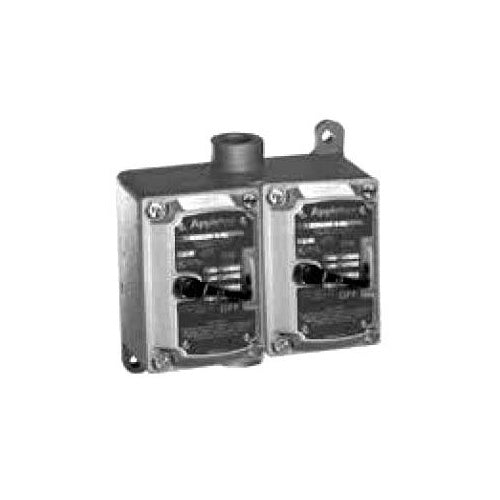

Appleton EDSC2230 Explosion-Proof Switch Station

Product Specifications

• Part Number: EDSC2230
• UPC / GTIN: 78138169748
• UPC: 78138169748
• Operator Type: FRONT OPERATED LEVER
• Box Type: TWO GANG
• Hub Size: 3/4 INCH
• Enclosure Material: ZINC ELECTROPLATED DICHROMATE EPOXY POWDER COATED ASTM A47-77 MALLEABLE IRON
• Actuator Material: NYLON 6/6
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/7CD/9EFG
• Brand Name: Contender[T], UNILETS[R]
• Model: EDS
• Type: FEED THROUGH
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF
• Voltage Rating: 120 TO 277 VAC
• Current Rating: 20 AMPERE
• Contact Configuration: 3 WAY
• CATALOG DESCRIPTION: EXPLOSIONPROOF TUMBLER SWITCH CONTROL STATION, TYPE FEED THROUGH, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 120 TO 277 VAC, CURRENT RATING 20 AMPERE, CONTACT CONFIGURATION 3-WAY, OPERATOR TYPE FRONT OPERATED LEVER, BOX TYPE TWO GANG, HUB SIZE 3/4 INCH, ENCLOSURE MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON, ACTUATOR MATERIAL NYLON 6/6, ENCLOSURE CLASS I DIV 1 GROUP C D, CLASS I DIV 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/7CD/9EFG, APPROVAL UL 894/1203, POWER RATING 1 HP AT 120 VAC, 2 HP AT 240 VAC, APPLICATION HAZARDOUS LOCATION
• Full Technical Description: Feed-Through Type; 3-Way Contact Configuration; 3/4 Inch Hub Size; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Enclosure Material; UL 894/1203, UL (Canada and Us), CSA C22.2 Approval; 120/277 Volt AC Voltage Rating; Class I Div 1 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure; 20 Amp Current Rating; Explosionproof, Dust Ignitionproof; Front Operated Lever Operator Type; Nylon 6/6 Actuator Material; 2-Gang Box Type; CONTENDER[TM] Brand; Power Rating 1 HP at 120 Volt AC, 2 HP at 240 Volt AC; Overall Dimension 7.41 Inch Width X 5.31 Inch Depth X
• Manufacturer: Appleton Electric
• Product Description: Appleton EDSC2230 Explosion-Proof Switch Station
• UNSPSC: 39121565
• UPC 12 Digit: 781381697484
