Appleton EDSC250F3WA Explosion-Proof Switch

Overview

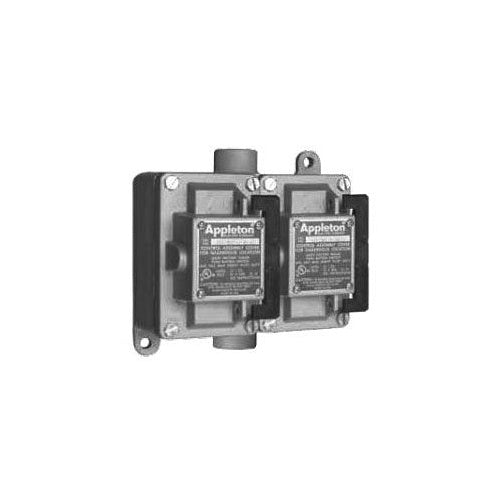

Appleton EDSC250F3WA Explosion-Proof Switch

Product Specifications

• UPC: 78138179527
• Operator Type: FRONT OPERATED LEVER
• Box Type: TWO GANG
• Hub Size: 1/2 INCH
• Enclosure Material: HIGH STRENGTH COPPER FREE ALUMINUM
• Actuator Material: NYLON 6/6
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 7CD/9EFG
• Catalog Number: EDSC250F3WA
• Brand Name: UNILETS[R]
• Model: EDS
• Type: FEED THROUGH
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF
• Voltage Rating: 120 TO 277 VAC
• Current Rating: 20 AMPERE
• Contact Configuration: 3 WAY
• Catalog Description: EXPLOSIONPROOF TUMBLER SWITCH CONTROL STATION, TYPE FEED THROUGH, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 120 TO 277 VAC, CURRENT RATING 20 AMPERE, CONTACT CONFIGURATION 3-WAY, OPERATOR TYPE FRONT OPERATED LEVER, BOX TYPE TWO GANG, HUB SIZE (2) 1/2 INCH, ENCLOSURE MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED COPPER-FREE ALUMINUM, ACTUATOR MATERIAL NYLON 6/6, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 7BCD/9EFG, APPROVAL UL 894/1203, OVERALL DIMENSION 6.19 INCH W X 4.69 INCH D X 6.13 INCH H, APPLICATION HAZARDOUS LOCATION
• Category: Disconnect Motor Switches & Accessories
• Full Technical Description: Feed-Through Type; 3-Way Contact Configuration; 1/2 Inch Hub Size; Copper-Free Aluminum Enclosure Material; UL 894/1203, CUL Approval; 120/277 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7BCD/9EFG Enclosure; 20 Amp Current Rating; Explosionproof, Dust Ignitionproof; Front Operated Lever Operator Type; Nylon 6/6 Actuator Material; 2-Gang Box Type; Power Rating 1 HP at 120 Volt AC, 2 HP at 240 Volt AC; Overall Dimension 6.19 Inch Width X 4.69 Inch Depth X 6.13 Inch Height; Includes Internal Ground Screw; Application Lighting and Light Power Load, Chemical/Petrochemical Plant, Refinery; Applicable Standard Nec/Cec; EDS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Tumbler/Snap Switch Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381795272
• SKU Name: app edsc250f3wa

Resources

• Manufacturer Spec Sheet
