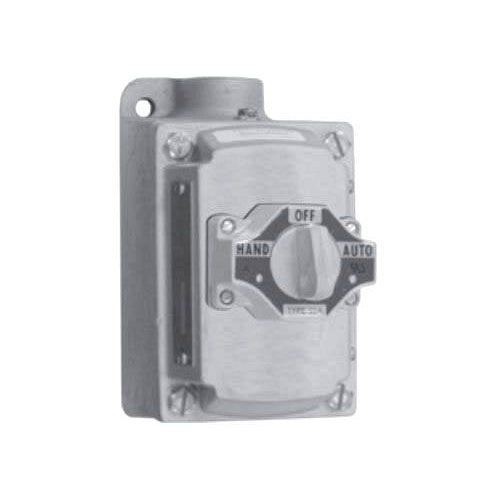

Appleton EDSC31273SA Aluminum Explosion-Proof Switch Station

Overview

Appleton EDSC31273SA Aluminum Explosion-Proof Switch Station

Product Specifications

• UPC: 78138173945
• Number Of Circuits: 2
• Number Of Positions: 3
• Operator Type: KNOB
• Box Type: SINGLE GANG
• Hub Size: (2) 1 INCH
• Enclosure Material: COPPER FREE ALUMINUM
• Enclosure: CLASS I DIV 1 GROUP C D, CLASS I DIV 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/7C/7D/9E/9F/9G
• Additional Information: INCLUDES INTERNAL GROUND SCREW
• Catalog Number: EDSC31273SA
• Brand Name: Contender[T], Appleton[R]
• Model: EDSC
• Type: FEED THROUGH
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF
• Voltage Rating: 600 VAC
• Current Rating: 10 AMPERE
• Contact Configuration: 2NO-2NC
• Catalog Description: SELECTOR SWITCH CONTROL STATION, TYPE FEED THROUGH, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, OPERATION TYPE MAINTAINED, CONTACT CONFIGURATION 4NO-4NC, NUMBER OF CIRCUITS 2, NUMBER OF POSITIONS 3, OPERATOR TYPE KNOB, BOX TYPE SINGLE GANG, HUB SIZE 1 INCH, ENCLOSURE MATERIAL ZINC ELECTROPLATED DICHROMATE EPOXY POWDER COATED COPPER-FREE ALUMINUM, ENCLOSURE CLASS I DIV 1 GROUP C D, CLASS I DIV 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/7CD/9EFG, APPROVAL UL 508/698/1203, SIZE 7.03 INCH L X 3.72 INCH W X 6.69 INCH D
• Category: Control Station Complete Assemblies
• Full Technical Description: Feed-Through Type; 4NO-2NC Contact Configuration; 1 Inch Hub Size; Maintained Operation Type; Aluminum Enclosure Material; UL 508/698/1203, UL (Canada and Us), CSA C22.2 Approval; 600 Volt AC Voltage Rating; Class I Div 1 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure; 10 Amp Current Rating; Explosionproof, Dust Ignitionproof; Knob Operator Type; 3 Position(S); 2 Circuit(S); 1-Gang Box Type; CONTENDER[TM] Brand; Legend Hand-Off-Auto; Includes Internal Ground Screw; Application Chemical/Petrochemical Plant, Refinery, Process Industry; Applicable Standard Nec/Cec; EDS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Selector Switch Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381739450
• SKU Name: app edsc31273sa
