Appleton edsc3129

Overview

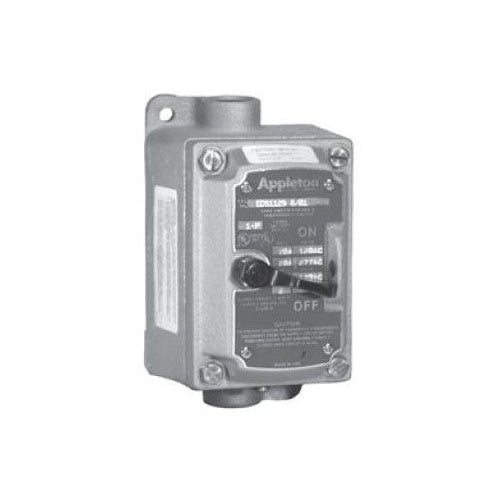

EDSC3129 ContenderTM 1-Gang Feed-Through Tumbler Switch Control Station, NEMA 3/7C/7D/9E/9F/9G

Product Specifications

• Catalog Number: EDSC3129
• UPC / GTIN: 781381699235
• Manufacturer Brand: Appleton®
• UNSPSC: 39121565
• Features: Explosionproof, dust-ignitionproof, ideal for installation in chemical and petrochemical plants, refineries and other process industries; Enclosures have external mounting lugs for ease of mounting; Smooth rounded integral bushing in each hub protects conductor insulation; Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure; Stainless steel hex head cap screws for attaching cover to mounting enclosure; Choice of front-operating handle may be locked in ON/OFF position; Each handle has close-tolerance threaded stainless steel shaft to meet explosionproof requirements; Factory sealed switch; 20 A switches 1 hp at 120 VAC and 2 hp at 240 VAC; Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads
• Actuator: Front Operated Lever
• Connection Type: 1 in Hub
• Contact Rating: 20 A at 120 to 277 V AC | 20 A at 120 to 277 VAC
• Country of Origin: Mexico
• Dimensions: 3.72 in W x 5.31 D x 7.03 in H
• Finish: Electro-Zinc Plated/Chromate/Epoxy Powder Coated
• Material: Malleable Iron
• Mounting Type: Surface
• NEMA Rating: NEMA 3/7C/7D/9E/9F/9G
• Number of Poles: 1
• Series: ContenderTM EDSC
• Type: 1-Gang Feed-Through
