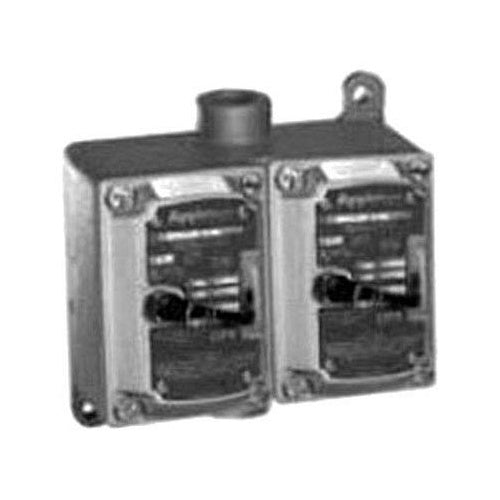

Appleton EDSC3229SA 2-Gang 1" Aluminum FS Cover Switch

Overview

Appleton EDSC3229SA 2-Gang 1" Aluminum FS Cover Switch

Product Specifications

• UPC: 78138173824
• Operator Type: FRONT OPERATED LEVER
• Box Type: TWO GANG
• Hub Size: 1 INCH
• Enclosure Material: HIGH STRENGTH COPPER FREE ALUMINUM
• Actuator Material: NYLON 6/6
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/7CD/9EFG
• Catalog Number: EDSC3229SA
• Brand Name: Contender[T], UNILETS[R]
• Model: EDS
• Type: FEED THROUGH
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF
• Voltage Rating: 120 TO 277 VAC
• Current Rating: 20 AMPERE
• Contact Configuration: 1 POLE
• Catalog Description: CONTENDER EDS SERIES 2-GANG TUMBLER SWITCH, VOLTAGE RATING: 120 - 277 VAC, AMPERAGE RATING: 20 AMP, NUMBER OF POLES: 1, ACTUATOR: FRONT OPERATED, ENCLOSURE: NEMA 3, 7CD, 9EFG, MOUNTING: SURFACE MOUNT WITH 1 IN FEED-THRU HUB, HP RATING: 1 HP AT 120 VAC, 2 HP AT 240 VAC, MATERIAL: ALUMINUM BODY, NYLON 6/6 HANDLE, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), HEIGHT: 5.31 IN, WIDTH: 7.41 IN, DEPTH: 5.31 IN, STANDARD: UL 894, UL 1203, E10523, E81751 UL LISTED, CLASS I, DIVISION 1, GROUPS C, D, CLASS I, DIVISION 2, GROUPS B, C, D, CLASS II, DIVISION 1 AND 2, GROUPS E, F, G, CLASS III, FOR USE IN CLASSIFIED AREAS WHERE IGNITABLE VAPORS, GASES OR HIGHLY COMBUSTIBLE DUSTS ARE PRESENT
• Category: Control Station Complete Assemblies
• Full Technical Description: Feed-Through Type; 1-Pole Contact Configuration; 1 Inch Hub Size; Copper-Free Aluminum Enclosure Material; UL 894/1203, UL (Canada and Us), CSA C22.2 Approval; 120/277 Volt AC Voltage Rating; Class I Div 1 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure; 20 Amp Current Rating; Explosionproof, Dust Ignitionproof; Front Operated Lever Operator Type; Nylon 6/6 Actuator Material; 2-Gang Box Type; CONTENDER[TM] Brand; Power Rating 1 HP at 120 Volt AC, 2 HP at 240 Volt AC; Overall Dimension 7.41 Inch Width X 5.31 Inch Dep
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Tumbler/Snap Switch Control Station
• Unspsc: 39121521
• UPC 12 Digit: 781381738248
• SKU Name: app edsc3229sa
