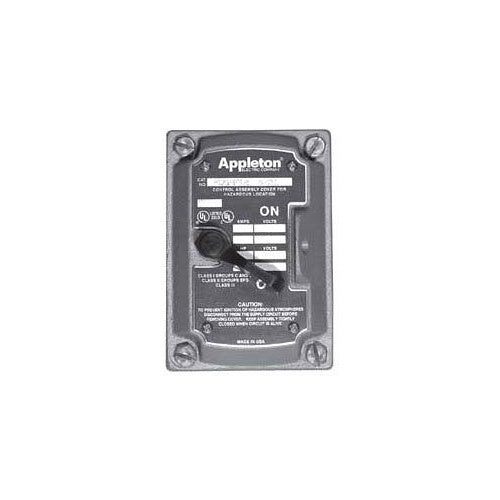

Appleton EDSF33WAQ Explosion-Proof Switch

Overview

Appleton EDSF33WAQ Explosion-Proof Switch

Product Specifications

• Catalog Description: EXPLOSIONPROOF TUMBLER SWITCH CONTROL STATION, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 120 TO 277 VAC, CURRENT RATING 30 AMPERE, CONTACT CONFIGURATION 3-WAY, OPERATOR TYPE FRONT OPERATED LEVER, ENCLOSURE MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED COPPER-FREE ALUMINUM, ACTUATOR MATERIAL NYLON 6/6, ENCLOSURE CLASS I DIV 1 GROUP C D, CLASS I DIV 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, APPROVAL UL 894/1203, APPLICATION DESIGNED TO PREVENT ARCING OF ENCLOSED SWITCHES IN IGNITABLE ATMOSPHERES, CHEMICAL PLANTS, PETROCHEMICAL PLANTS, REFINERIES AND OTHER PROCESS INDUSTRIES
• Category: Disconnect Motor Switches & Accessories
• Full Technical Description: Cover Assembly Type; Contender Front Operated Tumbler Switch Used on; Class I Div 1 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure; Explosionproof, Dust Ignitionproof; Switch Type 3-Way; Voltage Rating 120/277 Volt AC; Current Rating 30 Amp; Power Rating 2 HP at 120/240 Volt AC; Material Aluminum; Includes Internal Ground Screw, Sealing Chamber; Applicable S
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Switch Accessories
• Unspsc: 39121565
• UPC 12 Digit: 781381796446
• SKU Name: app edsf33waq
