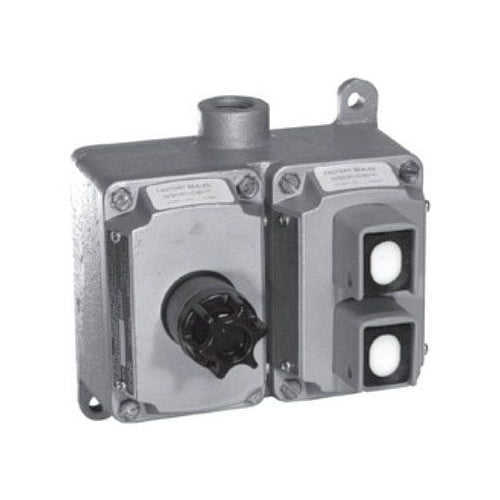

Appleton EFD210J1U1 1-Gang 2-Gang Tandem & 3-Device Cover

Overview

Appleton EFD210J1U1 1-Gang 2-Gang Tandem & 3-Device Cover

Product Specifications

• Catalog Description: PUSHBUTTON AND PILOT LIGHT CONTROL STATION, TYPE DEAD END, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, NUMBER OF CIRCUITS 1, CONTACT CONFIGURATION 1NO-1NC, UNIVERSAL, NUMBER OF PUSHBUTTONS 1, NUMBER OF PILOT LIGHTS 1, OPERATOR TYPE FRONT OPERATED BUTTON, PILOT LIGHT TYPE 120 VAC 6 W 6S6 LAMP, LEGEND START/STOP, BOX TYPE SINGLE GANG, HUB SIZE 1 INCH, ENCLOSURE MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/7CD/9EFG, APPROVAL UL 508/698/1203, OVERALL SIZE 3 INCH W X 5.75 INCH D X 6.31 INCH H, COVER MATERIAL ALUMINUM, INCLUDES INTERNAL GROUND SCREW, APPLICATION HAZARDOUS LOCATION
• Category: Control Station Complete Assemblies
• Full Technical Description: Dead End Type; 1NO-1NC, Universal Contact Configuration; 1 Inch Hub Size; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Enclosure Material; UL 508/698/1203, UL (Canada and Us) Approval; 600 Volt AC Voltage R
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pushbutton Switch and Pilot Light Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381132237
• SKU Name: app efd210j1u1

Resources

• Manufacturer Spec Sheet
