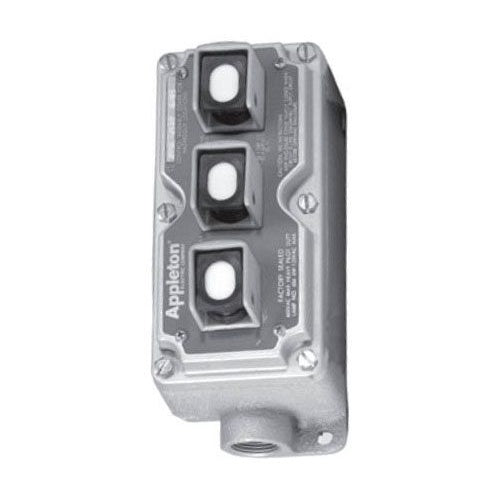

Appleton EFDCL50-U3 3-Device 3-Pushbutton

Overview

Appleton EFDCL50-U3 3-Device 3-Pushbutton

Product Specifications

• UPC: 78138113302
• Number Of Circuits: 3
• Contact Configuration: 3NO-3NC, Momentary, Universal
• Operator Type: Front Operated Pushbutton
• Box Type: Three Device
• Hub Size: (1) 1/2 Inch
• Enclosure Material: Zinc Electroplated Dichromate Epoxy Powder Coated Malleable Iron
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G
• Approval: UL 508/698/1203
• Additional Information: Includes Internal Ground Screw; Application Hazardous Location
• Catalog Number: EFDCL50-U3
• Model: EFD
• Type: Feed Through
• Constructional Feature: Explosionproof, Dust Ignitionproof
• Voltage Rating: 600 VAC
• Current Rating: 10 Ampere
• Legend: Start/Stop
• Number Of Elements: 3
• Catalog Description: PUSHBUTTON CONTROL STATION, TYPE FEED THROUGH, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, LEGEND START/STOP, NUMBER OF CIRCUITS 3, CONTACT CONFIGURATION 3NO-3NC, UNIVERSAL, OPERATOR TYPE FRONT OPERATED BUTTON, HUB SIZE 1/2 INCH, ENCLOSURE MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/7CD/9EFG, APPROVAL UL 508/698/1203, OVERALL SIZE 3.5 INCH W X 4.75 INCH D X 8.13 INCH H, APPLICATION HAZARDOUS LOCATION, OPERATION TYPE MOMENTARY, NUMBER OF DEVICE 3
• Category: Control Station Complete Assemblies
• Full Technical Description: Feed-Through Type; Universal Contact Configuration; 1/2 Inch Hub Size; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Enclosure Material; UL 508/698/1203, UL (Canada and Us) Approval; 600 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure; 10 Amp Current Rating; Start/Stop Legend; Explosionproof, Dust Ignitionproof; 3 Circuit(S); 3-Device Box Type; Operation Type Momentary; Includes Internal Ground Screw; Application Chemical/Petrochemical Plant, Refinery, Process Industry; Applicable Standard Nec/Cec; EFD Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pushbutton Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381133029
• SKU Name: app efdcl50u3
