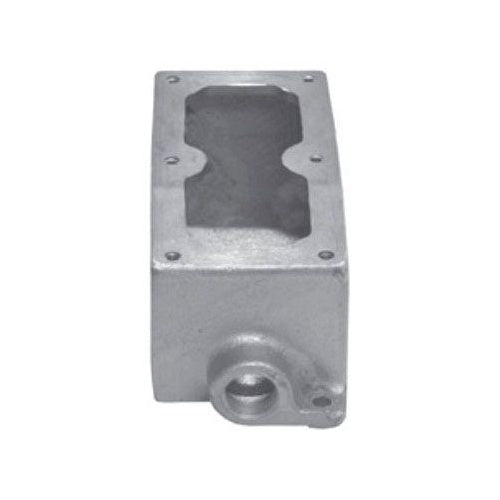

Appleton EFDCL75-Q 3 Device Unilet Body

Overview

Appleton EFDCL75-Q 3 Device Unilet Body

Product Specifications

• UPC: 78138110636
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 7C/7D/9E/9F/9G
• Size: 3.5 INCH W X 8.88 INCH H
• Mounting: LUG
• Used On: EFD/EDS SERIES FACTORY SEALED CONTROL STATION
• Catalog Number: EFDCL75-Q
• Brand Name: Appleton[R]
• Model: EFD
• Type: FEED THROUGH
• Construction: DEEP, THREE DEVICE
• Number Of Hubs: 2
• Hub Size: 3/4 INCH
• Material: ZINC ELECTROPLATED DICHROMATE EPOXY POWDER COATED MALLEABLE IRON
• Catalog Description: CONTROL STATION MOUNTING BODY, TYPE FEED THROUGH, NUMBER OF GANGS 1, CONSTRUCTION THREE DEVICE, NUMBER OF HUBS 2, HUB SIZE 3/4 INCH, MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON BODY WITH COPPER-FREE ALUMINUM COVER, ENCLOSURE CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 7CD/9EFG, SIZE 3 INCH W X 6.13 INCH H, MOUNTING LUG, USED ON EFD SERIES CONTROL STATIONS, APPROVAL UL 508/698/1203
• Category: Control Station Enclosures
• Full Technical Description: Feed-Through Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Efd Factory Sealed Control Station Used on; 3/4 Inch Hub Size; 2 Hub(S); UL 508/698/1203, UL (Canada and Us) Approval; Class I Div 1 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 7CD/9EFG Enclosure; 3-Device Construction; Legend Hand-Off-Auto; Includes Internal Ground Screw; Application Chemical/Petrochemical Plant, Refinery, Process Industry; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Control Station Box
• Unspsc: 39131708
• UPC 12 Digit: 781381106368
• SKU Name: app efdcl75q
