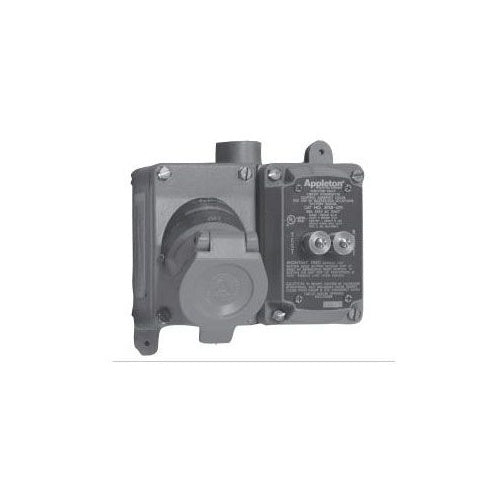

Appleton EFS275A2023GFI GFI Receptacle & Aluminum Box

Overview

Appleton EFS275A2023GFI GFI Receptacle & Aluminum Box

Product Specifications

• Brand Name: Appleton
• Material: Cast Copperfree (Less Than 4/10 Of 1 PCT) Aluminum
• Mounting: Surface Mount With 3/4 IN Dead-End Hub
• Special Features: Explosionproof, dust-ignitionproof; EFSR-GFI cover installed on two-gang EFD box together with U-Line factory sealed receptacle; Glass-filled reinforced polyester insulating blocks
• Standard: Class I, Groups C and D, Class II, Groups F and G, and Class III; UL Listed: E81751; UL Standard: 943, 1203
• Sub Brand: U-Line
• Type: 2-Gang Receptacle With Mounting Box
• Voltage Rating: 125 VAC
• Catalog Description: U-LINE 2-GANG RECEPTACLE WITH MOUNTING BOX, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 125 VAC, MATERIAL: CAST COPPERFREE (LESS THAN 4/10 OF 1 PCT) ALUMINUM, MOUNTING: SURFACE MOUNT WITH 3/4 IN DEAD-END HUB, FINISH: BAKED GRAY EPOXY CLAD, STANDARD: CLASS I, GROUPS C AND D, CLASS II, GROUPS F AND G, AND CLASS III, UL LISTED: E81751, UL STANDARD: 943, 1203
• Category: Cast Boxes
• Full Technical Description: Dead End Type; 3/4 Inch Hub Size; UL 943/1203, CSA, CUL Approval; 125 Volt AC 50/60 Hertz Voltage Rating; Class I Div 1 Group B C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/3RX/7BCD/9FG Enclosure; 20 Amp Current Rating; 2-Gang Box Type; Ecp Mating Plug; U-LINE[TM] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Material Baked Gray Epoxy Clad Copper-Free Cast Aluminum (Mounting Box/Cover); Includes GFI Cover, External Seal; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381671309
• SKU Name: app efs275a2023gfi
