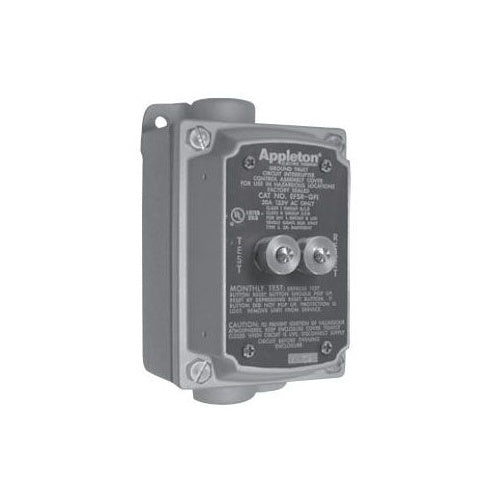

Appleton EFSC150GFI GFI Cover And Box

Overview

Appleton EFSC150GFI GFI Cover And Box

Product Specifications

• UPC: 78138167112
• Additional Information: Type Feed Through; Number of Gang 1; Application Lighting System, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump, Portable/Stationary Equipment
• Catalog Number: EFSC150GFI
• Brand Name: U-Line[R]
• Model: EFSC
• Constructional Feature: Explosionproof, Dust Ignitionproof
• Hub Size: 1/2 Inch
• Enclosure Material: MalleableIron
• Enclosure: Class I Div 1 and 2 Group B, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/3R/7B/7C/7D/9E/9F/9G
• Approval: UL 943/1203
• Catalog Description: EFSR-GFI SERIES 1-GANG GROUND FAULT CIRCUIT INTERRUPTER, VOLTAGE RATING: 125 VAC, AMPERAGE RATING: 20 AMP, FREQUENCY RATING: 50 - 60 HZ, TRIP TYPE: 5 MILAMP TRIP SETTING, ENCLOSURE: NEMA 3, 3R, 7BCD, 9EFG, MATERIAL: MALLEABLE IRON, MOUNTING: SURFACE MOUNT WITH 1/2 IN FEED-THRU HUB, STANDARD: CLASS I, GROUP B, CLASS I, GROUPS C, D, CLASS II, GROUPS E, F, G, CLASS III, UL LISTED: E81751, UL STANDARD: 943, 1203, FOR U-LINE 20 AMP RECEPTACLES
• Category: Cast Boxes
• Full Technical Description: 1/2 Inch Hub Size; Malleable Iron, Stainless Steel (Cover Bolt/Test/Reset Button/Shaft) Enclosure Material; UL 943/1203, CUL Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/3RX/7BCD/9FG Enclosure; Explosionproof, Dust Ignitionproof; Baked Gray Epoxy Clad Enclosure Finish; 20 Amp Receptacle Current Rating; 125 Volt AC 50/60 Hertz Receptacle Voltage Rating; Type Feed-Through; Number of Gangs 1; Application Highly Corrosive Atmosphere, Hazardous/Wet Location; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle with Circuit Breaker
• Unspsc: 39121565
• UPC 12 Digit: 781381671125
• SKU Name: app efsc150gfi

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
