Appleton efsc1524sa

Overview

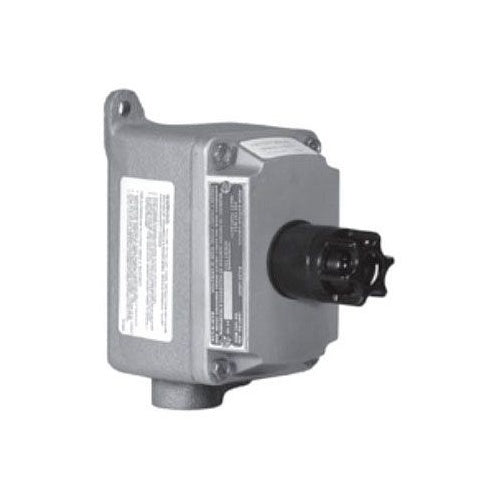

APPLETON ELECTRIC EFSC1524SA Pilot Light Control Station, Explosion Proof, Aluminium

Product Specifications

• Catalog Number: EFSC1524SA
• UPC / GTIN: 781381738972
• Manufacturer: APPLETON ELECTRIC
• Approvals: csa.png, ul.png
• Box Type: Single Gang
• Color: Red, Ruby Red
• Construction Features: Dust-Ignitionproof, Explosionproof
• Hazardous Location Classification: Class I, Division 1, Groups C And D; Class I, Division 2, Groups B, C And D; Class II, Divisions 1 And 2, Groups E, F And G; Class III; NEMA 3/7B/7C/7D/9E/9F/9G
• Enclosure Material: Copper-Free Aluminum
• Device Type: Feed-Thru
• Family Series: Appleton Switches
• Hub Size: 1 / 2 "
• Illuminated: Yes
• Lamp Type: 120V AC 6W 6S6 Incandescent Lamp
• Number Of Hubs: 2
• Number Of Pilot Lights: 1
• Number Of Push Buttons: 0
• Number Of Selector Switches: 0
• Product Data Sheet: appleton-electric-efs1624.pdf
• Total Number Of Devices: 1
• Type: Feed-Thru
• Voltage: 120V
• Country Of Origin: US
• Height: 17.86 cm
• Length: 10.31 cm
• Width: 9.45 cm
• Weight: 0.045 kg
• UPC: 781381738972
