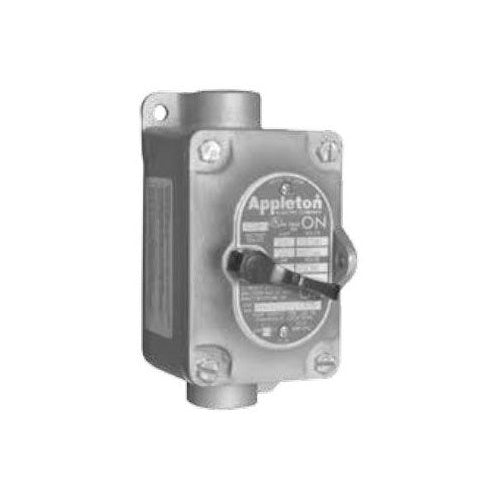

Appleton EFSC175-F1 3/4" Explosion-Proof Switch

Overview

Appleton EFSC175-F1 3/4" Explosion-Proof Switch

Product Specifications

• UPC: 78138128405
• Box Type: 1-Gang
• Hub Size: 3/4 Inch
• Enclosure Material: Malleable Iron
• Actuator Material: Nylon 6/6
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 7BCD/9EFG
• Approval: UL 894/1203
• Additional Information: Application Designed to Prevent Arcing of Enclosed Switches Inch Ignitable Atmospheres During Connect and Disconnect Operation of Lighting and Light Power Load
• Catalog Number: EFSC175-F1
• Model: EFS
• Type: Feed Through
• Constructional Feature: Explosionproof, Dust Ignitionproof, Rain Tight, Wet Location
• Voltage Rating: 120 to 277 Volt AC
• Current Rating: 20 Amp
• Contact Configuration: 2-Pole
• Operator Type: Front Operated
• Catalog Description: EFS SERIES 1-GANG TUMBLER SWITCH, VOLTAGE RATING: 120 - 277 VAC, AMPERAGE RATING: 20 AMP, NUMBER OF POLES: 1, ACTUATOR: FRONT OPERATED, ENCLOSURE: NEMA 7CD, 9EFG, MOUNTING: SURFACE MOUNT WITH 3/4 IN FEED-THRU HUB, HP RATING: 1 HP AT 12
• Category: Disconnect Motor Switches & Accessories
• Full Technical Description: Feed-Through Type; 1-Pole Contact Configuration; 3/4 Inch Hub Size; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Enclosure Material; UL 894/1203 Approval; 120/277 Volt AC Voltage Rating; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 7CD/9EFG Enclosure; 20 Amp Current Rating; Explosionproof, Dust Ignitionproof; Front Operated Lever Operator Type; Nylon 6/6 Actuator Material; 1-Gang Box Type; Power Rating 1 HP at 120 Volt AC, 2 HP at 240 Volt AC; Overall Dimension 3 Inch Width X 4.53 Inch Depth X 6.13 Inch Height; Includes Internal Ground Screw; Application Chemical/Petrochemical Plant, Refinery, Process Industry; Applicable Standard Nec/Cec; EFS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Tumbler/Snap Switch Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381284059
• SKU Name: app efsc175f1

Resources

• Manufacturer Spec Sheet
