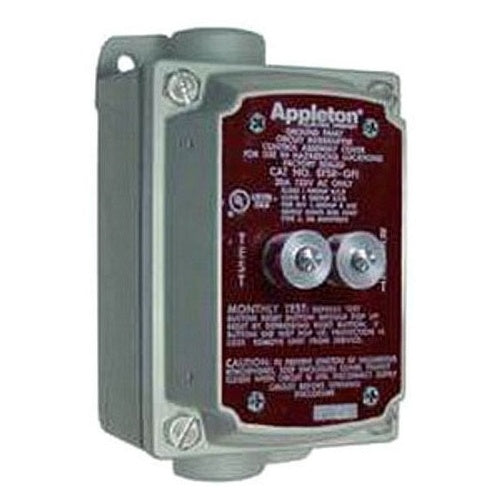

Appleton EFSC175GFI GFI Cover And Box

Overview

Appleton EFSC175GFI GFI Cover And Box

Product Specifications

• Application: For U-Line 20 AMP Receptacles
• Trip Type: 5 MILAMP Trip Setting
• Brand Name: Appleton
• Enclosure: NEMA 3, 3R, 7BCD, 9EFG
• Special Features: GFI cover and box; 5 MILAMP Trip setting; Provides required ground fault protection for portable electrically-operated devices; For ground fault protection in hazardous locations; Well suited for use in highly corrosive atmospheres and wet locations; Factory sealed construction; No external seals are required; Arcing is confined within the devices interior sealed chamber; Smooth-operating test and reset buttons; Can be installed in standard EFD Series mounting boxes; Cover bolts,test and reset buttons and shafts are made up of stainless steel
• Standard: Class I, Group B; Class I, Groups C, D; Class II, Groups E, F, G; Class III; UL Listed: E81751; UL Standard: 943, 1203
• Type: EFSR-GFI Series 1-Gang Ground Fault Circuit Interrupter
• Voltage Rating: 125 VAC
• Material: Malleable Iron
• Frequency Rating: 50 - 60 HZ
• Catalog Description: EFSR-GFI SERIES 1-GANG GROUND FAULT CIRCUIT INTERRUPTER, VOLTAGE RATING: 125 VAC, AMPERAGE RATING: 20 AMP, FREQUENCY RATING: 50 - 60 HZ, TRIP TYPE: 5 MILAMP TRIP SETTING, ENCLOSURE: NEMA 3, 3R, 7BCD, 9EFG, MATERIAL: MALLEABLE IRON, MOUNTING: SURFACE MOUNT WITH 3/4 IN FEED-THRU HUB, STANDARD: CLASS I, GROUP B, CLASS I, GROUPS C, D, CLASS II, GROUPS E, F, G, CLASS III, UL LISTED: E81751, UL STANDARD: 943, 1203, FOR U-LINE 20 AMP RECEPTACLES
• Category: Cast Boxes
• Full Technical Description: 3/4 Inch Hub Size; Malleable Iron, Stainless Steel (Cover Bolt/Test/Reset Button/Shaft) Enclosure Material; UL 943/1203, CUL Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/3RX/7BCD/9FG Enclosure; Explosionproof, Dust Ignitionproof; Baked Gray Epoxy Clad Enclosure Finish; 20 Amp Receptacle Current Rating; 125 Volt AC 50/60 Hertz Receptacle Voltage Rating; Type Feed-Through; Number of Gangs 1; Application Highly Corrosive Atmosphere, Hazardous/Wet Location; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle with Circuit Breaker
• Unspsc: 39121565
• UPC 12 Digit: 781381671132
• SKU Name: app efsc175gfi
