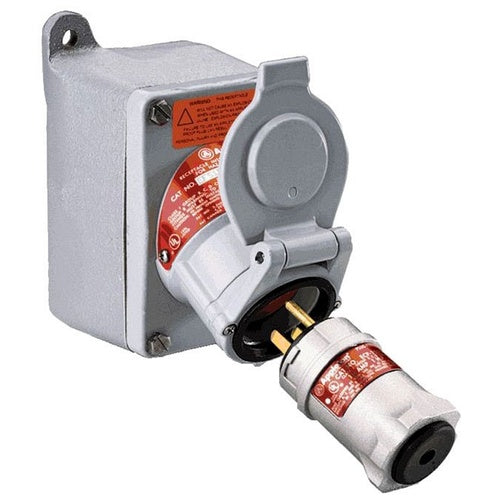

Appleton EFSC210-2023M U-Line Receptacle Malleable Iron

Overview

Appleton EFSC210-2023M U-Line Receptacle Malleable Iron

Product Specifications

• Catalog Description: PIN AND SLEEVE RECEPTACLE ASSEMBLY, TYPE FEED THROUGH, VOLTAGE RATING 125 VAC, CURRENT RATING 20 AMPERE, POWER RATING 1 HP, NUMBER OF POLES 3, NUMBER OF WIRES 2, HUB SIZE 1 INCH, BOX TYPE TWO GANG, ENCLOSURE CLASS I DIV 1 AND 2 GROUP C D, CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP F G, CLASS III, APPROVAL UL 894/1010/1203, CSA C22.2, APPLICATION LIGHTING SYSTEMS, CONVEYORS, HEATERS, MOTOR-GENERATOR SETS, AIR CONDITIONERS, COMPRESSORS, PUMPS, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, MATERIAL MALLEABLE IRON RECEPTACLE/BOX
• Category: Pin & Sleeve Devices
• Full Technical Description: Feed-Through Type; 1 Inch Hub Size; 2 Wire(S); UL 894/1010/1203, CSA C22.2 Approval; 125 Volt AC Voltage Rating; Class I Div 1 and 2 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group F G, Class III Enclosure; 20 Amp Current Rating; Spring Cover Type; 1 HP Power Rating; 3 Pole(S); 2-Gang Box Type; Ecp Mating Plug; U-LINE[TM] Brand; Overall Dimension 6.19 Inch Width X 5.64 Inch Depth; Constructional Feature Explosionproof/Dust Ignitionproof;
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381397230
• SKU Name: app efsc2102023m
