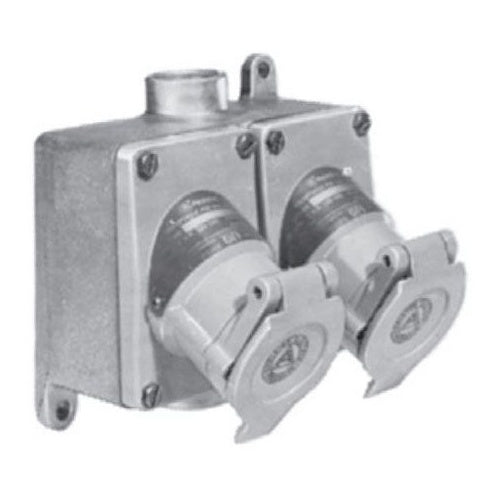

Appleton EFSC250-2023M Receptacle C-Type Conduit Body

Overview

Appleton EFSC250-2023M Receptacle C-Type Conduit Body

Product Specifications

• UPC: 78138139726
• Hub Size: 1/2 INCH
• Box Type: TWO GANG
• Cover Type: SPRING
• Mating Plug: CPH, ECP
• Enclosure: CLASS I GROUP C D, CLASS II GROUP F G, CLASS III, NEMA 3/3R/7B/7C/7D/9F/9G
• Catalog Number: EFSC250-2023M
• Brand Name: U-Line.
• Type: FEED THROUGH
• Voltage Rating: 125 VAC
• Current Rating: 20 AMPERE
• Power Rating: 1 HP
• Number Of Poles: 3
• Number Of Wires: 2
• Catalog Description: PIN AND SLEEVE RECEPTACLE ASSEMBLY, TYPE FEED THROUGH, VOLTAGE RATING 125 VAC, CURRENT RATING 20 AMPERE, POWER RATING 1 HP, NUMBER OF POLES 3, NUMBER OF WIRES 2, HUB SIZE 1/2 INCH, BOX TYPE TWO GANG, ENCLOSURE CLASS I DIV 1 AND 2 GROUP C D, CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP F G, CLASS III, APPROVAL UL 894/1010/1203, CSA C22.2, APPLICATION LIGHTING SYSTEMS, CONVEYORS, HEATERS, MOTOR-GENERATOR SETS, AIR CONDITIONERS, COMPRESSORS, PUMPS, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, MATERIAL MALLEABLE IRON RECEPTACLE/BOX
• Category: Pin & Sleeve Devices
• Full Technical Description: Feed-Through Type; 1/2 Inch Hub Size; 2 Wire(S); UL 894/1010/1203, CSA C22.2 Approval; 125 Volt AC Voltage Rating; Class I Div 1 and 2 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group F G, Class III Enclosure; 20 Amp Current Rating; Spring Cover Type; 1 HP Power Rating; 3 Pole(S); 2-Gang Box Type; Ecp Mating Plug; U-LINE[TM] Brand; Overall Dimension 6.19 Inch Width X 5.64 Inch Depth; Constructional Feature Explosionproof/Dust Ignitionproof; Number of Conduit Opening 2; Material Zinc Electroplate/Chromate/Epoxy Powder Coated Malleable Iron (Mounting Box/Cover); Application Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump, Petrochemical
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381397261
• SKU Name: app efsc2502023m
