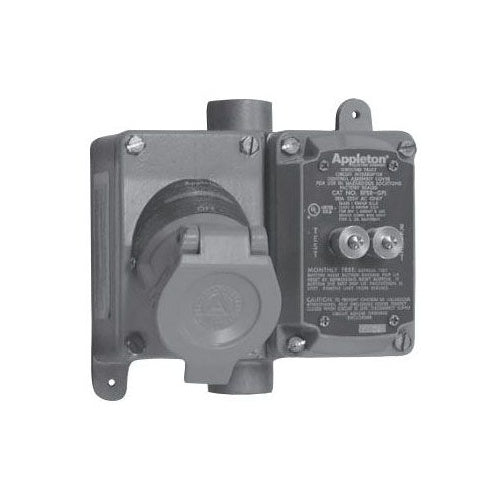

Appleton EFSC250A2023GFI GFI Receptacle & Aluminum Box

Overview

Appleton EFSC250A2023GFI GFI Receptacle & Aluminum Box

Product Specifications

• Catalog Description: GROUND FAULT CIRCUIT INTERRUPTER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, RECEPTACLE VOLTAGE RATING 125 VAC, RECEPTACLE CURRENT RATING 20 AMPERE, HUB SIZE 1/2 INCH, MATING PLUG ECP, ENCLOSURE MATERIAL ALUMINUM, ENCLOSURE FINISH BAKED GRAY EPOXY CLAD, ENCLOSURE CLASS I DIV 1 GROUP B C D, CLASS I DIV 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/3R/7BCD/9EFG, APPROVAL UL, TYPE FEED-THROUGH
• Category: Cast Boxes
• Full Technical Description: Feed-Through Type; 1/2 Inch Hub Size; UL 943/1203, CSA, CUL Approval; 125 Volt AC 50/60 Hertz Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/3RX/7BCD/9FG Enclosure; 20 Amp Current Rating; 2-Gang Box Type; Ecp Mating Plug; U-LINE[TM] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Material Baked Gray Epoxy Clad Copper-Free Cast Aluminum (Mounting Box/Cover); Includes External Seal; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381671323
• SKU Name: app efsc250a2023gfi

Resources

• Manufacturer Spec Sheet
