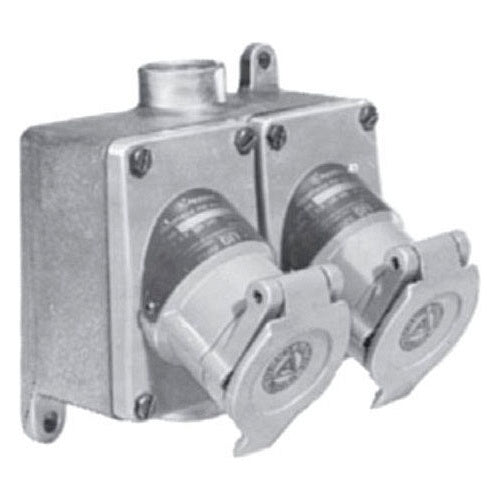

Appleton EFSC275-2023M Receptacle C-Type Conduit Body

Overview

Appleton EFSC275-2023M Receptacle C-Type Conduit Body

Product Specifications

• UPC: 78138139728
• Hub Size: 3/4 Inch
• Box Type: Two Gang
• Cover Type: Spring
• Enclosure: Class I Div 1 and 2 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group F G, Class III
• Approval: UL 1203/1010/894, CSA C22.2
• Additional Information: Overall Dimension 6.19 Inch W x 5.63 Inch H; Application Lighting System, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump, Stationary Equipment
• Catalog Number: EFSC275-2023M
• Brand Name: U-Line[R]
• Type: Feed Through
• Voltage Rating: 125 VAC
• Current Rating: 20 Ampere
• Power Rating: 1 HP
• Number Of Poles: 3
• Number Of Wires: 2
• Catalog Description: U-LINE 2-GANG RECEPTACLE WITH MOUNTING BOX, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 125 VAC, MATERIAL: MALLEABLE IRON RECEPTACLE AND MOUNTING BOX, NEMA RATING: NEMA 3, 3R, MOUNTING: SURFACE MOUNT WITH 3/4 IN FEED-THRU HUB, MOTOR HORSEPOWER: 1 HP, FINISH: EPOXY POWDER COAT, DIMENSIONS: 6.19 IN WIDTH X 6.13 IN HEIGHT X 5.69 IN DEPTH, STANDARD: CLASS I, DIVISION 1 AND 2, GROUPS B, C, D, CLASS II, DIVISION 1 AND 2, GROUPS F, G, CLASS III, UL LISTED: E10784, E81751, UL STANDARD: 1203, 1010, 894, CSA STANDARD: C22.2 NO. 25, C22.2 NO. 30, C22.2 NO. 42, C22 NO.159, CSA CERTIFIED: 038644, FOR CPH AND ECP MATING PLUGS
• Category: Pin & Sleeve Devices
• Full Technical Description: Feed-Through Type; 3/4 Inch Hub Size; 2 Wire(S); UL 894/1010/1203, CSA C22.2 Approval; 125 Volt AC Voltage Rating; Class I Div 1 and 2 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group F G, Class III Enclosure; 20 Amp Current Rating; Spring Cover Type; 1 HP Power Rating; 3 Pole(S); 2-Gang Box Type; Ecp Mating Plug; U-LINE[TM] Brand; Overall Dimension 6.19 Inch Width X 5.64 Inch Depth; Constructional Feature Explosionproof/Dust Ignitionproof; Number of Conduit Opening 2; Material Zinc Electroplate/Chromate/Epoxy Powder Coated Malleable Iron (Mounting Box/Cover); Application Lighting S
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381397285
• SKU Name: app efsc2752023m
