Appleton EFSC275A2023GFI GFI Receptacle & Aluminum Box

Overview

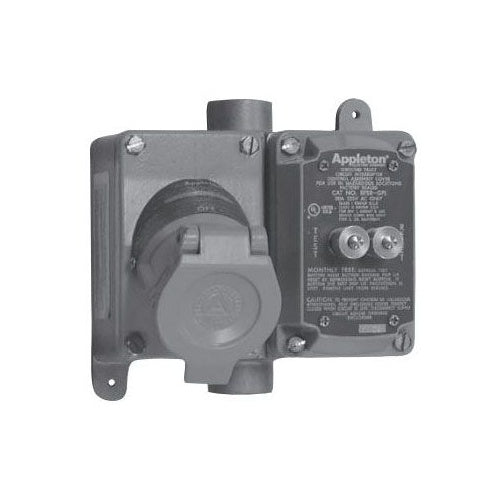

Appleton EFSC275A2023GFI GFI Receptacle & Aluminum Box

Product Specifications

• UPC: 78138167133
• Additional Information: Type Feed Through; Number of Gang 1; Application Lighting System, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump, Portable/Stationary Equipment
• Catalog Number: EFSC275A2023GFI
• Brand Name: U-Line[R]
• Model: EFSC
• Constructional Feature: Explosionproof, Dust Ignitionproof
• Hub Size: 3/4 Inch
• Enclosure Material: Aluminum
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/3R/7B/7C/7D/9E/9F/9G
• Approval: UL 943/1203
• Catalog Description: APPLETON U-LINE 2-GANG RECEPTACLE WITH MOUNTING BOX, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 125 VAC, MATERIAL: CAST COPPERFREE (LESS THAN 4/10 OF 1 PCT) ALUMINUM, MOUNTING: SURFACE MOUNT WITH 3/4 IN FEED-THRU HUB, FINISH: BAKED GRAY EPOX
• Category: Cast Boxes
• Full Technical Description: Feed-Through Type; 3/4 Inch Hub Size; UL 943/1203, CSA, CUL Approval; 125 Volt AC 50/60 Hertz Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/3RX/7BCD/9FG Enclosure; 20 Amp Current Rating; 2-Gang Box Type; Ecp Mating Plug; U-LINE[TM] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Material Baked Gray Epoxy Clad Copper-Free Cast Aluminum (Mounting Box/Cover); Includes External Seal; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381671330
• SKU Name: app efsc275a2023gfi

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
