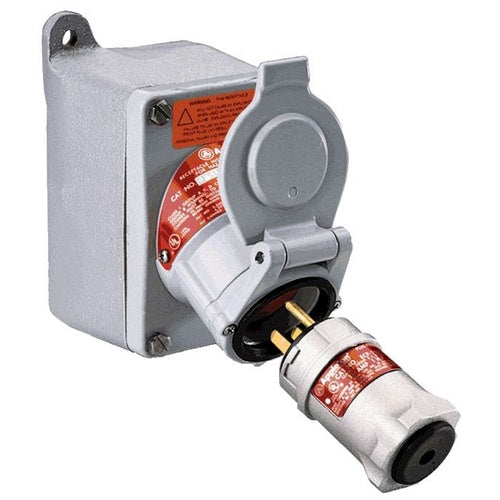

Appleton EFSCB175-20232M 3P 20A 250V Receptacle

Overview

Appleton EFSCB175-20232M 3P 20A 250V Receptacle

Product Specifications

• UPC: 78138139734
• Hub Size: 3/4 INCH
• Box Type: SINGLE GANG
• Cover Type: SPRING
• Mating Plug: CPH, ECP
• Enclosure: CLASS I GROUP C D, CLASS II GROUP F G, CLASS III, NEMA 3/3R/7B/7C/7D/9F/9G
• Catalog Number: EFSCB175-20232M
• Brand Name: U-Line.
• Type: FEED THROUGH
• Voltage Rating: 250 VAC
• Current Rating: 20 AMPERE
• Power Rating: 2 HP
• Number Of Poles: 3
• Number Of Wires: 2
• Catalog Description: PIN AND SLEEVE RECEPTACLE ASSEMBLY, TYPE FEED THROUGH, VOLTAGE RATING 250 VAC, CURRENT RATING 20 AMPERE, POWER RATING 2 HP, NUMBER OF POLES 3, NUMBER OF WIRES 2, HUB SIZE 1/2 INCH, BOX TYPE SINGLE GANG, ENCLOSURE CLASS I DIV 1 AND 2 GROUP C D, CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP F G, CLASS III, APPROVAL UL 894/1010/1203, CSA C22.2, APPLICATION LIGHTING SYSTEMS, CONVEYORS, HEATERS, MOTOR-GENERATOR SETS, AIR CONDITIONERS, COMPRESSORS, PUMPS, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, MATERIAL MALLEABLE IRON RECEPTACLE/BOX
• Category: Pin & Sleeve Devices
• Full Technical Description: Feed-Through Type; 3/4 Inch Hub Size; 2 Wire(S); UL 894/1010/1203, CSA C22.2 Approval; 250 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/3RX/7BCD/9FG Enclosure; 20 Amp Current Rating; Spring Cover Type; 2 HP Power Rating; 3 Pole(S); 1-Gang Box Type; Ecp Mating Plug; U-LINE[TM] Brand; Overall Dimension 3.5 Inch Width X 5.64 Inch Depth X 6.5 Inch Height; Constructional Feature Explosionproof/Dust Ignitionproof; Material Zinc Electroplate/Chromate/Epoxy Powder Coated Malleable Iron (Mounting Box/Cover); Application Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump, Petrochemical Plant, Petro
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381397346
• SKU Name: app efscb17520232m
