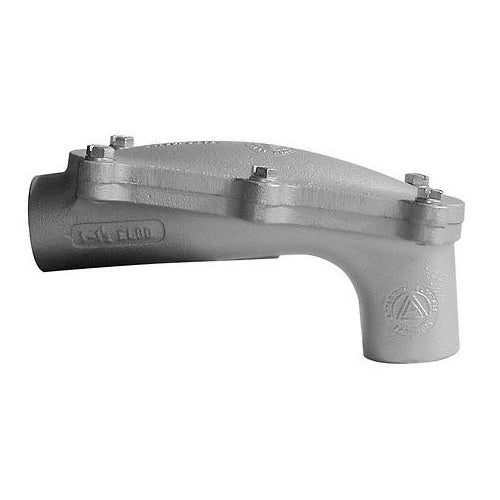

Appleton ELBD50A 1/2" 90D Pulling Elbow

Overview

Appleton ELBD50A 1/2" 90D Pulling Elbow

Product Specifications

• UPC: 78138162201
• Connection Type: FEMALE
• Material: COPPER FREE ALUMINUM ALLOY
• Finish: EPOXY POWDER COATED
• Trade Size In Inch Uom: in
• Catalog Number: ELBD50A
• Brand Name: UNILET.
• Model: ELBD
• Type: PULLING
• Trade Size: 1/2 INCH
• Trade Size In Inch: .5
• Trade Size Fractional: 1/2
• Bend Angle: 90 DEG
• Catalog Description: EXPLOSIONPROOF CONDUIT PULLING ELBOW, TYPE PULLING, TRADE SIZE 1/2 INCH, BEND ANGLE 90 DEG, CONNECTION TYPE FEMALE, MATERIAL ALUMINUM, FINISH EPOXY POWDER COATED, APPROVAL UL 886, CSA C22.2, APPLICATION TO PROVIDE ACCESS TO CONDUCTOR FOR PULLING, SPLICING AND MAINTENANCE IN HAZARDOUS LOCATION, USED ON THREADED METAL CONDUIT, SIZE 5.25 INCH H, CAPACITY 33.2 CU INCH
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Copper-Free Aluminum, Neoprene (Gasket), Steel (Cover Screw) Material; Epoxy Powder Coated, Zinc Electroplated (Cover Screw) Finish; Tapered Threaded Hub Connection Type; UL 886 Approval; 1/2 Inch Trade Size; 90 Degree Bend Angle; UNILETS[R] Brand; Volume 8.5 Cubic Inch; Constructional Feature Explosionproof/Dust Ignitionproof; Enclosure Rating Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7CD/9EFG; Used on Threaded Metal Conduit; Includes (2) Furnished Reducing Bushing; Application Hazardous Location; Applicable Standard Nec/Cec, Federal Specification A-A-50563; ELBD Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Elbow
• Unspsc: 39131717
• UPC 12 Digit: 781381622011
• SKU Name: app elbd50a
