Appleton ELBY-50 1/2" 90D CAppletoned Elbow

Overview

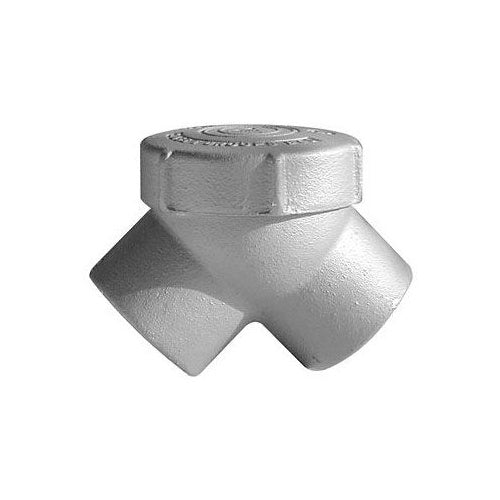

Appleton ELBY-50 1/2" 90D Capped Elbow

Product Specifications

• UPC: 78138129360
• Finish: Zinc Electroplated Chromate Epoxy Powder Coated
• Approval: UL, CSA
• Additional Information: Enclosure Type Class 1 Group B C D, Class II Group E F G, Class III; Used On Threaded IMC/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard NEC/CEC
• Catalog Number: ELBY-50
• Brand Name: Unilets[R]
• Model: ELBY
• Type: Capped, Pulling
• Trade Size: 1/2 Inch
• Bend Angle: 90 Degree
• Connection Type: Female
• Material: Malleable Iron
• Catalog Description: ELBY SERIES 90 DEG CAPPED ELBOW, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), LENGTH: 2-3/4 IN, TRADE SIZE: 1/2 IN, FLEXIBILITY: EMT, CONNECTION: FEMALE THREADED, DIMENSION C: 2.06 IN,
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Capped Type; Malleable Iron Material; Zinc Electroplated/Chromate/Epoxy Powder Coated Finish; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; 1/2 Inch Trade Size; 90 Degree Bend Angle; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Enclosure Rating Class I Div 1 and 2 Group B C D, Class 1 Zone 1 and 2 Group Iia Iib Plus H2, Class II Div 1 and 2 Group E F G, Class III; Used on Threaded Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; ELBY Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Elbow
• Unspsc: 39131717
• UPC 12 Digit: 781381293600
• SKU Name: app elby50
