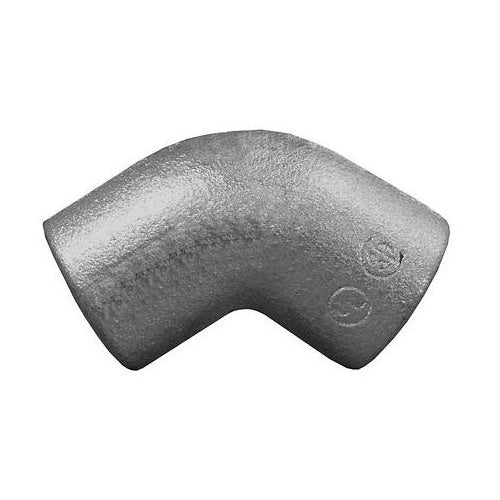

Appleton ELF4575A 3/4" 45D Aluminum Female Elbow

Overview

Appleton ELF4575A 3/4" 45D Aluminum Female Elbow

Product Specifications

• UPC: 78138162214
• Finish: Natural
• Approval: UL, CSA
• Additional Information: Enclosure Type Class I Group A B C D, Class II Group E F G, Class III; Used On Threaded IMC/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard NEC/CEC
• Catalog Number: ELF4575A
• Brand Name: Unilets[R]
• Model: ELF45
• Type: Tapped
• Trade Size: 3/4 Inch
• Bend Angle: 45 Degree
• Connection Type: Female
• Material: Copper-Free Aluminum
• Catalog Description: UNILETS 45 DEG ELBOW, MATERIAL: ALUMINUM, FINISH: NATURAL ALUMINUM, TRADE SIZE: 3/4 IN, FLEXIBILITY: RIGID AND IMC, CONNECTION: TAPERED FNPT, DIMENSION A: 1.31 IN, STANDARD: UL 886, UL FILE NUMBER E10444, CSA C22.2 NO. 25 AND 30, CSA 065
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Copper-Free Aluminum Material; Natural Finish; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; 3/4 Inch Trade Size; 45 Degree Bend Angle; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Enclosure Rating Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Elbow
• Unspsc: 39131717
• UPC 12 Digit: 781381622141
• SKU Name: app elf4575a

Resources

• Manufacturer Spec Sheet
