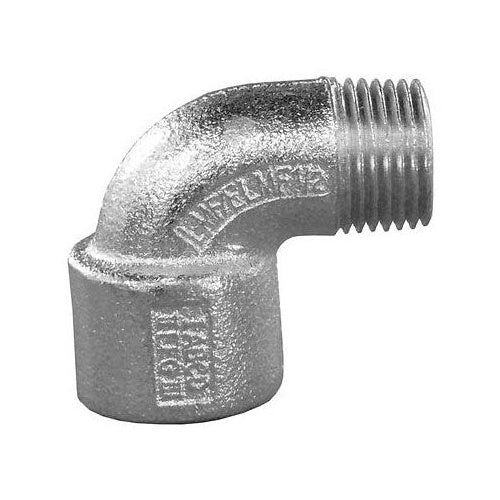

Appleton ELMF90-50 1/2" Female/Male Elbow

Overview

Appleton ELMF90-50 1/2" Female/Male Elbow

Product Specifications

• UPC: 78138129475
• Finish: Zinc Electroplated
• Approval: UL, CSA
• Additional Information: Height 1.72 Inch; Enclosure Type Class I Group A B C D, Class II Group E F G, Class III; Used On Threaded IMC/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard NEC/CEC
• Catalog Number: ELMF90-50
• Brand Name: Unilets[R]
• Model: ELMF90
• Type: Tapped, Short
• Trade Size: 1/2 Inch
• Bend Angle: 90 Degree
• Connection Type: Male/Female
• Material: Malleable Iron
• Catalog Description: UNILETS 90 DEG ELBOW, MATERIAL: MALLEABLE IRON ASTM A47-77, FINISH: ZINC ELECTROPLATE, TRADE SIZE: 1/2 IN, FLEXIBILITY: RIGID AND IMC, CONNECTION: TAPERED MNPT X TAPERED FNPT, DIMENSION A: 1-1/2 IN, STANDARD: UL 886, UL FILE NUMBER E104
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Malleable Iron Material; Zinc Electroplated Finish; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; 1/2 Inch Trade Size; 90 Degree Bend Angle; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Enclosure Rating Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Elbow
• Unspsc: 39131717
• UPC 12 Digit: 781381294751
• SKU Name: app elmf9050

Resources

• Manufacturer Spec Sheet
