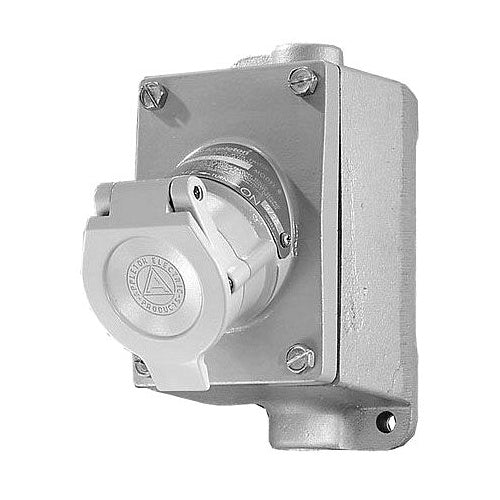

Appleton ENR11202 1-Gang Receptacle Assembly

Overview

Appleton ENR11202 1-Gang Receptacle Assembly

Product Specifications

• UPC: 78138181547
• Enclosure: Class I Group C D, Class I Div 2 Group B, Class I Zone 1 Group IIB, Class I Zone 2 Group IIB Plus H2, Class II Group F G, Class III, NEMA 3RX
• Approval: UL 894, UL 1010, UL 1203
• Additional Information: Application Lighting System, Conveyor, Heater, Motor-Generator Set, Air Conditioner, Compressor, Pumps
• Catalog Number: ENR11202
• Brand Name: U-Line[R], Contender[R]
• Type: Dead End
• Voltage Rating: 250 VAC
• Current Rating: 20 Ampere
• Hub Size: 1/2 Inch
• Box Type: Single Gang
• Mating Plug: ECP
• Catalog Description: U-LINE CONTENDER 1-GANG RECEPTACLE WITH MOUNTING BOX, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 250 VAC, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM COVER, MALLEABLE IRON MOUNTING BOX, NEMA RATING: NEMA 3RX, MOUNTING: SURFACE MOUNT WITH 1/2 IN DEAD-END HUB, FINISH: EPOXY POWDER COAT COVER AND TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT) MOUNTING BOX, DIMENSIONS: 3.5 IN WIDTH X 6.06 IN HEIGHT X 6.19 IN DEPTH, STANDARD: CLASS I, GROUPS C, D, CLASS I, DIVISION 2, GROUP B, CLASS I, ZONE 1, GROUP IIB, CLASS I, ZONE 2, GROUP IIB + H2, CLASS II, GROUPS F, G, CLASS III, UL LISTED: E10784, UL 1203, UL 1010, UL 894, FOR ECP MATING PLUGS
• Category: Pin & Sleeve Devices
• Full Technical Description: Dead End Type; 1/2 Inch Hub Size; 2 Wire(S); UL 894/1010/1203 Approval; 250 Volt AC Voltage Rating; Class I Div 1 Group C D, Class I Div 2 Group B, Class II Div 1 and 2 Group F G, Class I Zone 1 Group Iib, Class I Zone 2 Group Iib + H2, Class III, NEMA 3/3R/3RX/7CD/9FG Enclosure; 20 Amp Current Rating; 2 HP Power Rating; 3 Pole(S); 1-Gang Box Type; Ecp Mating Plug; U-LINE[TM], CONTENDER[TM] Brand; Overall Dimension 3.5 Inch Width X 6.19 Inch Depth X 6.06 Inch Height; Constructional Feature Explosionproof/Dust Ignitionproof; Number of Conduit Opening 1; Material Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron (Mounting Box), Epoxy Powder Coated Copper-Free Aluminum (Cover); Application Lighting
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381815475
• SKU Name: app enr11202
