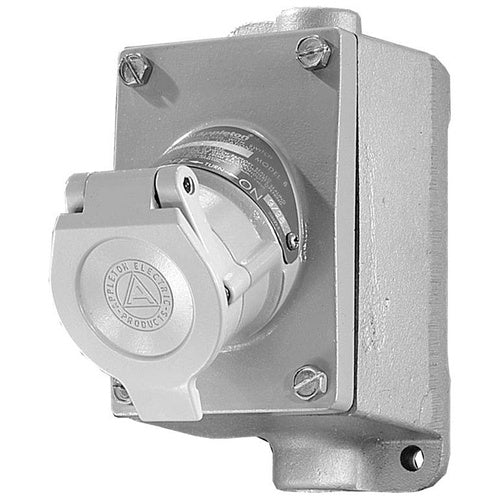

Appleton ENR12201 2-Gang Receptacle Assembly

Overview

Appleton ENR12201 2-Gang Receptacle Assembly

Product Specifications

• UPC: 78138181541
• Enclosure: Class I Group C D, Class I Div 2 Group B, Class I Zone 1 Group IIB, Class I Zone 2 Group IIB Plus H2, Class II Group F G, Class III, NEMA 3RX
• Approval: UL 894, UL 1010, UL 1203
• Additional Information: Application Lighting System, Conveyor, Heater, Motor-Generator Set, Air Conditioner, Compressor, Pumps
• Catalog Number: ENR12201
• Brand Name: U-Line[R], Contender[R]
• Type: Dead End
• Voltage Rating: 125 VAC
• Current Rating: 20 Ampere
• Hub Size: 1/2 Inch
• Box Type: Two Gang
• Mating Plug: ECP
• Catalog Description: PIN AND SLEEVE RECEPTACLE ASSEMBLY, TYPE DEAD END, VOLTAGE RATING 125 VAC, CURRENT RATING 20 AMPERE, NUMBER OF POLES 3, NUMBER OF WIRES 2, HUB SIZE 1/2 INCH, BOX TYPE TWO GANG, COVER TYPE SPRING, MATING PLUG ECP-2023, NCP-2023, ENCLOSURE CLASS I GROUP C D, CLASS I DIV 2 GROUP B, CLASS I ZONE 1 GROUP IIB, CLASS I ZONE 2 GROUP IIB + H2, CLASS II GROUP F G, CLASS III, NEMA 3RX, APPROVAL UL 894/1010/1203, APPLICATION LIGHTING SYSTEMS, CONVEYORS, HEATERS, MOTOR-GENERATOR SETS, AIR CONDITIONERS, COMPRESSORS, PUMPS, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED COPPER-FREE ALUMINUM COVER, MALLEABLE IRON BODY
• Category: Pin & Sleeve Devices
• Full Technical Description: Dead End Type; 1/2 Inch Hub Size; 2 Wire(S); UL 894/1010/1203 Approval; 125 Volt AC Voltage Rating; Class I Div 1 Group C D, Class I Div 2 Group B, Class II Div 1 and 2 Group F G, Class I Zone 1 Group Iib, Class I Zone 2 Group Iib + H2, Class III, NEMA 3/3R/3RX/7CD/9FG Enclosure; 20 Amp Current Rating; 1 HP Power Rating; 3 Pole(S); 2-Gang Box Type; Ecp Mating Plug; U-LINE[TM], CONTENDER[TM] Brand; Overall Dimension 7.19 Inch Width X 6.19 Inch Depth X 6.06 Inch Height; Constructional Feature Explosionproof/Dust Ignitionproof; Number of Conduit Opening 1; Material Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron (Mounting Box), Epoxy Powder Coated Copper-Free Aluminum (Cover); Application Lighting System, Conveyor,
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381815413
• SKU Name: app enr12201

Resources

• Manufacturer Spec Sheet
