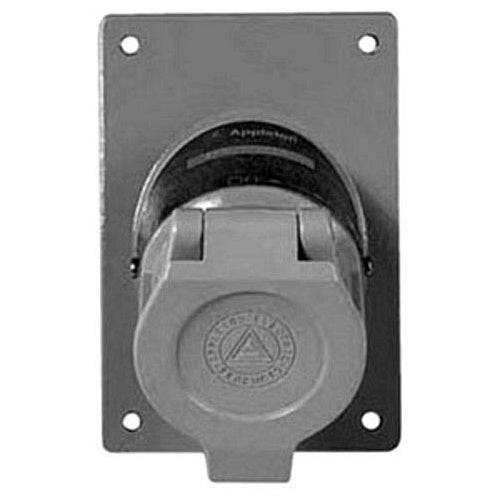

Appleton ENR6202 20A 250V Receptacle Assembly

Overview

Appleton ENR6202 20A 250V Receptacle Assembly

Product Specifications

• UPC: 78138181503
• Approval: UL 894/1010/1203
• Additional Information: Includes Cover; Application Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pumps
• Catalog Number: ENR6202
• Brand Name: U-Line[R], Contender[R]
• Voltage Rating: 250 VAC
• Current Rating: 20 Ampere
• Cover Type: Spring
• Material: EpoxyPowderCoated Copper Free Aluminum Cover
• Mating Plug: ECP
• Enclosure: Class I Group C D, Class I Div 2 Group B, Class I Zone 1 Group IIB, Class I Zone 2 Group IIB Plus H2, Class II Group F G, Class III, NEMA 3RX
• Catalog Description: U-LINE CONTENDER REPLACEMENT RECEPTACLE COVER ASSEMBLY, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 250 VAC, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM COVER, MALLEABLE IRON MOUNTING BOX, NE
• Category: Pin & Sleeve Devices
• Full Technical Description: Epoxy Powder Coated Copper-Free Aluminum Material; UL 894/1010/1203 Approval; 250 Volt AC Voltage Rating; Class I Div 1 Group C D, Class I Div 2 Group B, Class II Div 1 and 2 Group F G, Class I Zone 1 Group Iib, Class I Zone 2 Group Iib + H2, Class III, NEMA 3/3R/3RX/7CD/9FG Enclosure; 20 Amp Current Rating; Spring Cover Type; Enp Mating Plug; U-LINE[TM], CONTENDER[TM] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Application Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 781381815031
• SKU Name: app enr6202

Resources

• Manufacturer Spec Sheet
