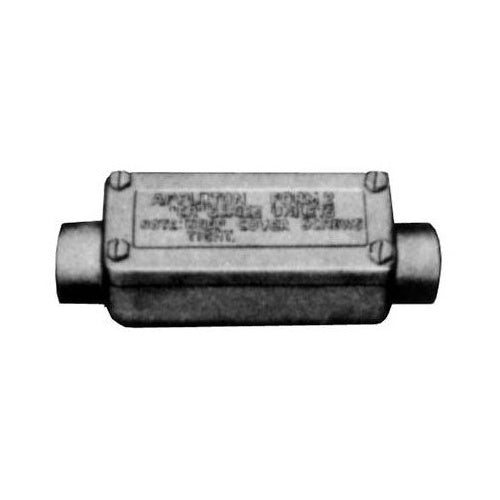

Appleton ERLL50 1/2" ERLL Unilet

Overview

Appleton ERLL50 1/2" ERLL Unilet

Product Specifications

• UPC: 78138130260
• Cover Type: Blank
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Material: Zinc Electroplated Chromate/Epoxy Powder Coated Malleable Iron
• Approval: UL, CSA C22.2
• Catalog Number: ERLL50
• Brand Name: Appleton
• Model: ER
• Style: L
• Hub Size: 1/2 Inch
• Number Of Hubs: 2
• Hub Location: (2) Sides
• Shape: Rectangular
• Catalog Description: UNILETS ER TYPE LL CONDUIT OUTLET BOX WITH COVER, HUB SIZE: 1/2 IN, HEIGHT: 1.81 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL FILE
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Rectangular Shape; 1/2 Inch Hub Size; 2 Hub(S); UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Blank Cover Type; LL Style; (2) Side Hub Location; Taper Threaded Hub Type; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Used on Threaded Rigid Metal Conduit; Application Indoor and Outdoor/Hazardous Location; Applicable Standard Nec/Cec; ER Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121308
• UPC 12 Digit: 781381302609
• SKU Name: app erll50

Resources

• Manufacturer Spec Sheet
