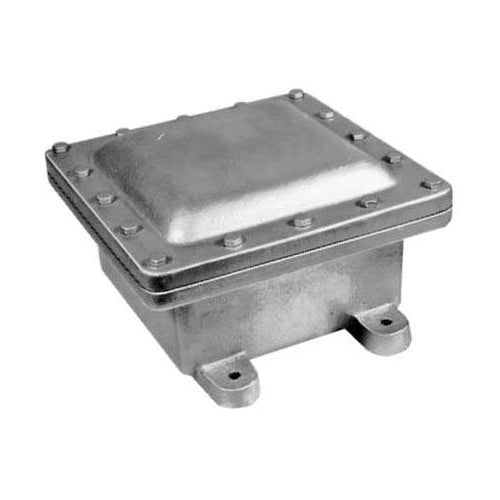

Appleton EXB060404 Explosion-Proof Junction Box

Overview

Appleton EXB060404 Explosion-Proof Junction Box

Product Specifications

• UPC: 78138182209
• Cover Material: CAST IRON
• Cover Finish: HOT DIP GALVANIZED
• Mounting: LUG
• Approval: UL
• Catalog Number: EXB060404
• Brand Name: Appleton[R]
• Model: EXB
• Inner Size: 6 INCH L X 4 INCH W X 4 INCH D
• Cover Type: SCREW ON
• Enclosure: CLASS I DIV 1 AND 2 GROUP D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III
• Body Material: CAST IRON
• Body Finish: HOT DIP GALVANIZED
• Catalog Description: CAST JUNCTION BOX, HUB SIZE 2 INCH, OVERALL SIZE 6-13/16 INCH L X 8-13/16 INCH W X 5-9/16 INCH D, INNER SIZE 6 INCH L X 4 INCH W X 4 INCH D, WALL THICKNESS 15/32 INCH (SIDE), 3/8 INCH (COVER), 5/16 INCH (BOTTOM), COVER TYPE SCREW-ON, ENCLOSURE CLASS I DIV 1 AND 2 GROUP D, CLASS I ZONE 1 AND 2 GROUP IIA, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 7D/9EFG, BODY MATERIAL CAST IRON, BODY FINISH HOT DIP GALVANIZED, COVER MATERIAL CAST IRON, COVER FINISH HOT DIP GALVANIZED, MOUNTING LUG, APPROVAL UL 886, CSA C22.2, LUG AND COVER SCREW MATERIAL STAINLESS STEEL, WEIGHT 27 LB
• Category: Cast Boxes
• Full Technical Description: 6 Inch Length X 4 Inch Width X 4 Inch Depth Inner Size; UL 886, CSA C22.2 Approval; Lug Mounting; Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Cast Iron Body Material; Cast Iron Cover Material; Hot Dip Galvanized Body Finish; Hot Dip Galvanized Cover Finish; Constructional Feature Explosionproof/Dust Ignitionproof; Applicable Standard Nec/Cec; EXB Model
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121332
• UPC 12 Digit: 781381822091
• SKU Name: app exb060404

Resources

• Manufacturer Spec Sheet
