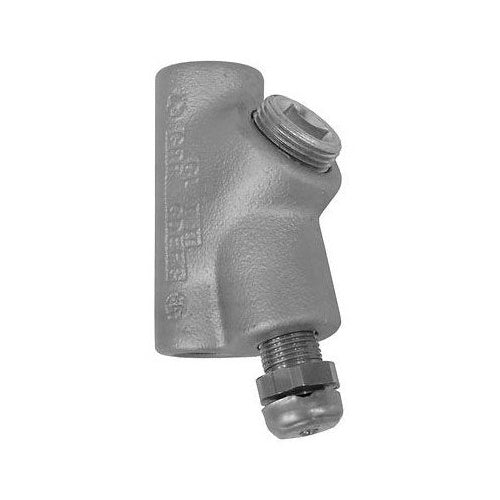

Appleton EYD36 1" Gray Male/Female Fitting

Overview

Appleton EYD36 1" Gray Male/Female Fitting

Product Specifications

• UPC: 78138162089
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL, CSA
• Additional Information: Overall Dimension 4.31 Inch Length x 2.19 Inch Width; Used On Threaded IMC/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard NEC/CEC
• Catalog Number: EYD36
• Model: EYD
• Type: Drain
• Turning Radius: 1.38 Inch
• Trade Size: 1 Inch
• Connection Type: Male/Female
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Grayloy Iron
• Mounting Position: Vertical
• Catalog Description: UNILETS EYD SERIES 25 PCT FILL VERTICAL CONDUIT DRAIN SEALING FITTING WITH REMOVABLE NIPPLE, SIZE: 1 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAPERED MNPT X TAPERED FNPT, TURNING RADIUS: 1.38 IN, LENGTH: 4.31 IN, WIDTH: 2.19 IN, STANDARD: UL 886 (1203), UL FILE NUMBER E10444, CSA C22.2 NO. 30, CSA 065181, UL LISTED FOR CLASS I, DIVISION 1 AND 2 GROUPS C, D, CLASS II, DIVISION 1 AND 2 GROUPS E, F, G, CLASS III, FOR USE WITH THREADED RIGID METAL CONDUIT AND IMC
• Category: Steel Sealing Bodies
• Full Technical Description: Drain Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron Material; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1 Inch Trade Size; Vertical Mounting Position; 1.38 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 4.31 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYD Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381620895
• SKU Name: app eyd36

Resources

• Manufacturer Spec Sheet
