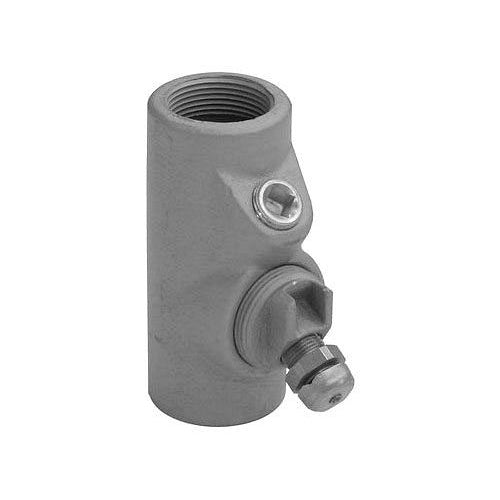

Appleton EYDEF125AL 1-1/4" Seal Conduit Body

Overview

Appleton EYDEF125AL 1-1/4" Seal Conduit Body

Product Specifications

• UPC: 78138180972
• Mounting Position: VERTICAL
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III
• Approval: UL
• Catalog Number: EYDEF125AL
• Brand Name: UNILETS.
• Model: EYDEF
• Type: DRAIN
• Turning Radius: 2.06 INCH
• Trade Size: 1-1/4 INCH
• Connection Type: FEMALE, FEMALE
• Material: ALMAG 35 ALUMINUM
• Catalog Description: EXPLOSIONPROOF RIGID/IMC CONDUIT SEAL, TYPE DRAIN, TURNING RADIUS 2.06 INCH, TRADE SIZE 1-1/4 INCH, CONNECTION TYPE FEMALE, MATERIAL EPOXY POWDER COATED ALMAG 35 ALUMINUM, MOUNTING POSITION VERTICAL, ENCLOSURE CLASS I DIV 1 AND 2 GROUP A B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, APPROVAL UL 886/E10444, CSA C22.2, SIZE 5.5 INCH L X 2.44 INCH W, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, RAINTIGHT, USED ON THREADED RIGID/IMC METAL CONDUIT
• Category: Aluminum Sealing Bodies
• Full Technical Description: Drain Type; Epoxy Powder Coated Copper-Free Almag 35 Aluminum Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1-1/4 Inch Trade Size; Vertical Mounting Position; 2.06 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 5.5 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYDEF Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381809726
• SKU Name: app eydef125al

Resources

• Manufacturer Spec Sheet
