Appleton eydef250

Overview

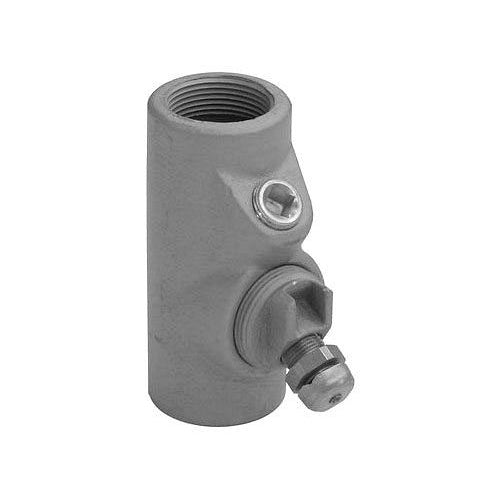

Appleton EYDEF250 2-1/2" Sealing Conduit Body

Product Specifications

• Part Number: EYDEF250
• UPC / GTIN: 78138169443
• UPC: 78138169443
• Mounting Position: Vertical
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL
• Additional Information: Application Sealing Vertical Conduit, Prevent Pressure Piling Within Conduit System, At the Boundary Where Conduit Leaves Classified Location
• Brand Name: Unilet[R]
• Model: EYDEF
• Type: Drain
• Turning Radius: 3 Inch
• Trade Size: 2-1/2 Inch
• Connection Type: Female, Female
• Material: Malleable Iron
• CATALOG DESCRIPTION: EXPLOSIONPROOF RIGID/IMC CONDUIT SEAL, TYPE DRAIN, TURNING RADIUS 3 INCH, TRADE SIZE 2-1/2 INCH, CONNECTION TYPE FEMALE, MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON, MOUNTING POSITION VERTICAL, ENCLOSURE CLASS I DIV 1 AND 2 GROUP A B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, APPROVAL UL 886/E10444, CSA C22.2, SIZE 8.5 INCH L X 4.25 INCH W, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, RAINTIGHT, USED ON THREADED RIGID/IMC METAL CONDUIT
• Full Technical Description: Drain Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 2-1/2 Inch Trade Size; Vertical Mounting Position; 3 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 8.5 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYDEF Model
• Manufacturer: Appleton Electric
• Product Description: Appleton EYDEF250 2-1/2" Sealing Conduit Body
• UNSPSC: 39121311
• UPC 12 Digit: 781381694438
