Appleton eydef300

Overview

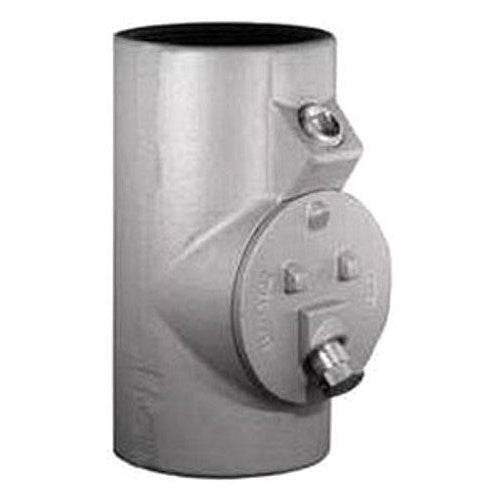

Appleton EYDEF300 3" Sealing Conduit Body

Product Specifications

• Part Number: EYDEF300
• UPC / GTIN: 78138169444
• UPC: 78138169444
• Mounting Position: VERTICAL
• Enclosure: CLASS I GROUP B C D, CLASS II GROUP E F G, CLASS III
• Approval: UL
• Brand Name: UNILETS.
• Model: EYDEF
• Type: DRAIN
• Turning Radius: 3.31 INCH
• Trade Size: 3 INCH
• Connection Type: FEMALE, FEMALE
• Material: MALLEABLE IRON
• CATALOG DESCRIPTION: UNILETS EY SERIES 40 PCT EXPANDED FILL VERTICAL DRAIN SEALING FITTING, SIZE: 3 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: FEMALE THREADED, TURNING RADIUS: 3.31 IN, LENGTH: 9.19 IN, WIDTH: 4-3/4 IN, STANDARD: UL 886 (1203), UL FILE NUMBER E10444, CSA C22.2 NO. 30, CSA 065181, UL LISTED FOR CLASS I, GROUPS B, C, D, CLASS II, GROUPS E, F, G, AND CLASS III, FOR USE WITH THREADED RIGID METAL CONDUIT AND IMC
• Full Technical Description: Drain Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3 Inch Trade Size; Vertical Mounting Position; 3.31 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 9.19 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYDEF Model
• Manufacturer: Appleton Electric
• Product Description: Appleton EYDEF300 3" Sealing Conduit Body
• UNSPSC: 39121311
• UPC 12 Digit: 781381694445
