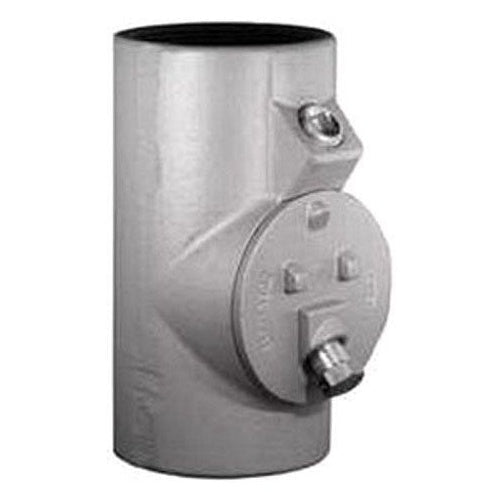

Appleton EYDEF300AL 3" Sealing Conduit Body

Overview

Appleton EYDEF300AL 3" Sealing Conduit Body

Product Specifications

• UPC: 78138180976
• Mounting Position: Vertical
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL
• Additional Information: Application Sealing Vertical Conduit, Prevent Pressure Piling Within Conduit System, At the Boundary Where Conduit Leaves Classified Location
• Catalog Number: EYDEF300AL
• Brand Name: Unilet[R]
• Model: EYDEF
• Type: Drain
• Turning Radius: 3.31 Inch
• Trade Size: 3 Inch
• Connection Type: Female, Female
• Material: Almag 35 Aluminum
• Catalog Description: EXPLOSIONPROOF RIGID/IMC CONDUIT SEAL, TYPE DRAIN, TURNING RADIUS 3.31 INCH, TRADE SIZE 3 INCH, CONNECTION TYPE FEMALE, MATERIAL EPOXY POWDER COATED ALMAG 35 ALUMINUM, MOUNTING POSITION VERTICAL, ENCLOSURE CLASS I DIV 1 AND 2 GROUP A B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, APPROVAL UL 886/E10444, CSA C22.2, SIZE 9.19 INCH L X 4.75 INCH W, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, RAINTIGHT, USED ON THREADED RIGID/IMC METAL CONDUIT
• Category: Aluminum Sealing Bodies
• Full Technical Description: Drain Type; Epoxy Powder Coated Copper-Free Almag 35 Aluminum Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3 Inch Trade Size; Vertical Mounting Position; 3.31 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 9.19 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYDEF Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381809764
• SKU Name: app eydef300al
